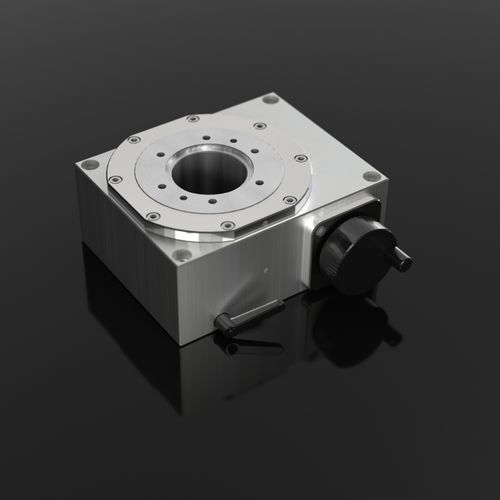

Rotary adjuster MDV series

manualstainless steel

Heavy duty rotary adjusters are made of stainless steel and aluminum. They work with a high-quality worm gear whose backlash can be minimised through infeed of the worm wheel or worm. The hollow shaft allows the engineer additional flexibility to hide tubes and cables. reading accuracy 0.5° high position repeatability accessories: hand wheel, locking lever and electronic position indicator output torque up to 40 Nm Features max. input torque: 1.25 Nm max. output torque: 20 Nm main dimensions (W x H x D): 80 x 100 x 45 mm weight: 1500 g Features Max. input torque: 2 Nm Max. output torque: 40 Nm Main dimensions (W x H x D): 100 x 140 x 80 mm Weight: 4.2 g Features Max. input torque: 3 Nm Max. output torque: 80 Nm Main dimensions (W x H x D): 160 x 200 x 90 mm Weight: 9.8 g
