Spark detector Atexon® series

fireelectromagneticmechanical

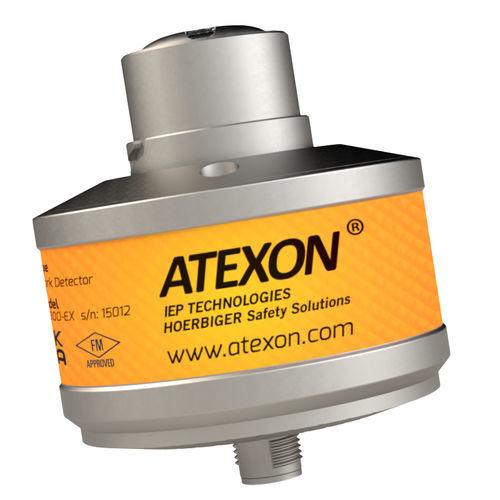

The Atexon® SD300-EX (standard) and SDF300-EX (daylight insensitive)Spark Detectors by IEP Technologies are designed to detect ignition sourcessuch as sparks, hot particles, and embers, in a conveying path such as a duct,chute, or mechanical conveyor, and signal an Atexon Spark Detection andExtinguishing System to initiate a water spray, helping prevent the ignitionsource from starting a fire or explosion. The SD300-EX and SDF300-EX Spark Detectors feature a best-in-class180-degree field of view (FOV) perpendicular to the direction of materialflow, which ensures reliable detection of ignition sources within high-speedmaterial flows without blind spots. The SD300-EX and SDF300-EX SparkDetectors are an excellent choice for facilities across various industries thatwish to protect their process lines from potential ignition sources. When it comes to detecting ignition sources with optimum efficiency, it iscrucial to consider all electromagnetic radiation emitted within the targetdetection area. The Atexon® SD300-EX Spark Detector takes this intoaccount with its extraordinary broad detection spectrum. It can measurevisible sparks through material layers and hot particles with the same singledetector. A broad detection spectrum coupled with a wide 180-degreeviewing angle provides the best available technology for detecting ignitionsources in process lines.
