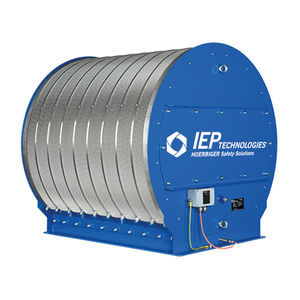

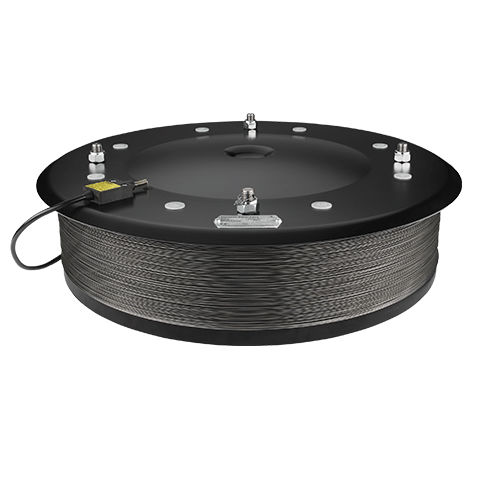

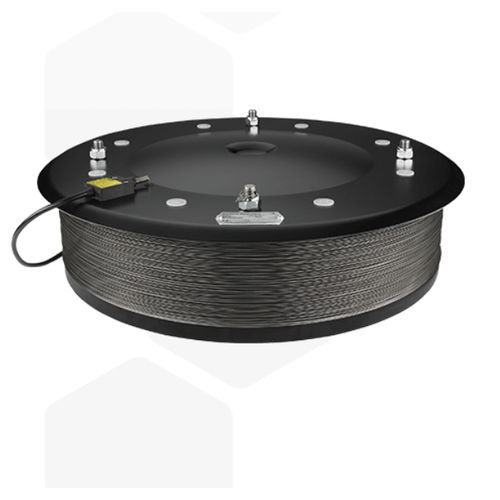

Flameless explosion vent EVN

Many process vessels are located inside a building or another area where standard explosion venting cannot safely be employed. For these applications, flameless explosion vents may be the best protection solution. The flameless vent consists of a venting device with an integrated flame arrester. When an explosion occurs, the venting device opens and directs the vented explosion through the flame arrester, where gases are cooled as they pass through the flame arrester material thus preventing flames from being expelled to the surrounding areas. The integrated electronic controls opening detection can be used to keep plant personnel informed of the status of the system. The functions and benefits of explosion relief valves at a glance: • Internal explosion pressure relief without blast flames or explosion vent ducts • Responds and opens at low-pressure setting (0.05 bar standard) • ATEX-certified and NFPA compliant • Resistance to full vacuum • EVN explosion relief valves are manufactured in a range • of sizes to suit most application • Uninterrupted operation after an explosion reduced the danger of fires • and subsequent explosions due to immediate resealing • Virtually maintenance free • Flexibility – no need to design a plant with external components or adjacent to the external wall Explosion relief valves are available in several material combinations in order to meet your specific technical requirements. The optional valve motion sensor and alternative o-ring materials provide versatility across a range of applications.
