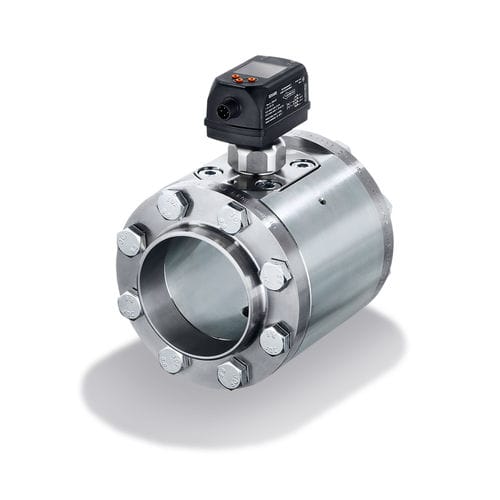

Compressed air measuring instrument SDG series

compressed air measuring instrument
compressed air measuring instrument
compressed air measuring instrument
compressed air measuring instrument
compressed air measuring instrument
Add to favorites
Compare this product


for compressed air


Precise compressed air measurement from its generation to the consumer - Exact allocation of energy costs due to precise consumption measurement - Improvement of energy efficiency via leakage monitoring - The basis for an energy management system according to EMAS or DIN EN ISO 50001 - Pressure monitoring thanks to the integrated pressure sensor - Different process values being indicated simultaneously removes the need for multiple instruments “All-in-one sensor” reduces costs The SDG compressed air meter is a real all-rounder. Thanks to the additionally integrated sensors for pressure and temperature, the user can see four process values (flow rate, pressure, temperature and total consumption) at a glance, which provide information about the energy efficiency of his system. Offering a wide portfolio of precise inline sensors from DN8 to DN250, ifm covers the complete range of applications. Energy monitoring at a glance The process values can be effectively monitored at all times via the integrated TFT display, which allows for selection between four individually adjustable graphic layouts with flexible orientation. What is more, all process values can be transmitted quickly and easily via IO-Link. Improvement of energy efficiency due to the integrated leakage monitoring in the installation The precise flow monitoring allows for leakage detection and energy cost savings. In addition, the unit's high repeatability enables exact allocation of the costs of compressed air to the respective production line as well as optimised product cost calculation.
