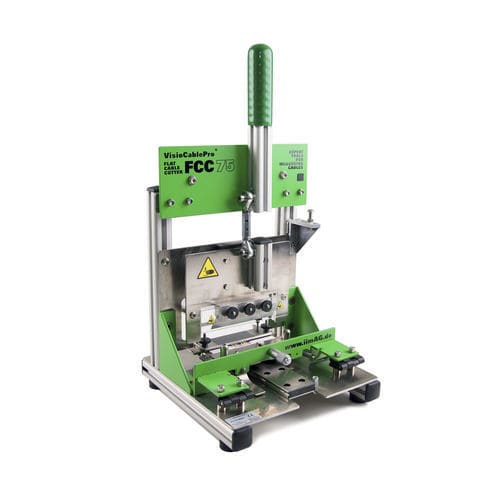

Cable cutting machine FCC75knifefor plasticsfor hoses
Add to favorites
Compare this product
Characteristics
- Technology
- knife
- Material
- for plastics
- Product handled
- for hoses, sample, cable
- Applications
- for industrial applications, laboratory, for the plastics industry
- Workpiece loading
- manual loading
- Configuration
- compact, table type
- Other characteristics
- precision, manual, portable, for thin materials, mobile, for small diameter
- Overall length
235 mm
(9 in)- Maximum width
225 mm
(9 in)- Height
450 mm
(18 in)- Weight
7.7 kg
(16.98 lb)
Description
Device for sample preparation of flat cables up to max. 75 x 8 mm (2.95 x 0.31“) width x height
Save up to 2/3 measuring uncertainty with well prepared samples
ATTENTION: Electrical conductors must be removed before cutting!
Easy to use
With the Flat Cable Cutter FCC75 it is really easy and efficient to cut sample slices (cable sheath cutter) up to a width of max. 75 mm (2.95“) and a height of max. 8mm (0.31“). The samples are optimally prepared for measurements in offline cable measuring devices.
Your Benefits
The Flat Cable Cutter FCC75 prepares your cable samples optimally for qualitative measurements in offline cable measuring instruments. Especially the very small and many cores of the flat cable sample require a very thin cut to avoid shadows in the measurement area. With its compact dimensions and low weight it is optimally suitable for the application in the lab and in the production.
Device details:
Save up to 2/3 measuring uncertainty with well prepared samples
ATTENTION: Electrical conductors must be removed before cutting!
Easy to use
With the Flat Cable Cutter FCC75 it is really easy and efficient to cut sample slices (cable sheath cutter) up to a width of max. 75 mm (2.95“) and a height of max. 8mm (0.31“). The samples are optimally prepared for measurements in offline cable measuring devices.
Your Benefits
The Flat Cable Cutter FCC75 prepares your cable samples optimally for qualitative measurements in offline cable measuring instruments. Especially the very small and many cores of the flat cable sample require a very thin cut to avoid shadows in the measurement area. With its compact dimensions and low weight it is optimally suitable for the application in the lab and in the production.
Device details:
- Very robust device for quick and efficient cutting of flat cables
- Exact adjustment of the sample thickness (depending on material)
- Thin, evenly and parallel cut samples with a smooth surface (especially the very small and many cores require a very thin cut to avoid shadows)
- Precise and repeatable measuring results due to reproducible samples
