Thermal testing device Hot Set Testtensilepressuretemperature
Add to favorites
Compare this product
Characteristics
- Test type
- quality, pressure, temperature, tensile, compression, hot tack, stability, damage resistance
- Operating mode
- manual
- Test material
- for cables
- Sector
- industrial, for laboratory, for quality control
- Technology
- mechanical, thermal
- Configuration
- portable, compact, benchtop, mobile
- Other characteristics
- stainless steel
Description

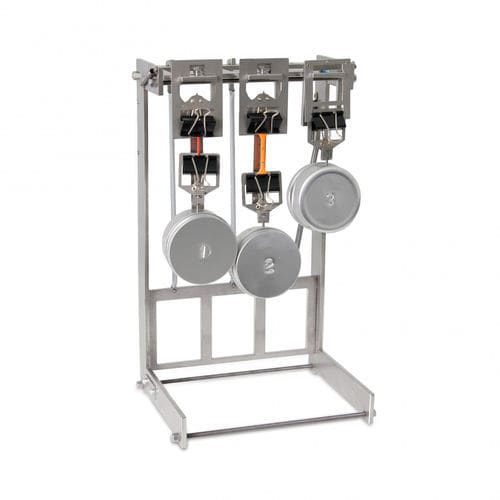

Hot Set Test & Heat Pressure Test
Device details
Optional - Hot Set Test complete
Device details
- 2 in 1: device contains the Hot Set Test as well as the Heat Pressure Test
- Robust and compact set including the device and an equipment case
- Possibility to attach a thermometer directly near the sample
- Measurement according to the cable standards IEC 60811 -507 (Hot Set Test) and IEC 60811 -508 (Heat Pressure Test) regarding sample attachment and weight attachment
- Precise choice of weights due to practical containers
- Simultaneous measurement of up to 3 cable or tube samples
Optional - Hot Set Test complete
- Sample rack for heat pressure and heat elongation test - Product No.: 401.0009.03
- Laser gauge - Product No.: 405.0009.01
- Thermal heat oven UN55 - Product No.: 405.0009.02
- Size (WxLxH): 585 x 514 x 784 mm (23 x 20.2 x 30.9“)
- Weight: 57 kg (125.6 lbs)
- Volume: 53 l
- Air exchange rate: 8-20x
- Thermal heat oven UN110 - Product No.: 405.0009.06
- Size (WxLxH): 745 x 584 x 864 mm (29 x 23 x 34“)
- Weight: 74 kg (163 lbs)
- Volume: 108 l
- Air exchange rate: 8 - 20x
