Multiple-disc clutch and brake S
pneumatichydraulicspring

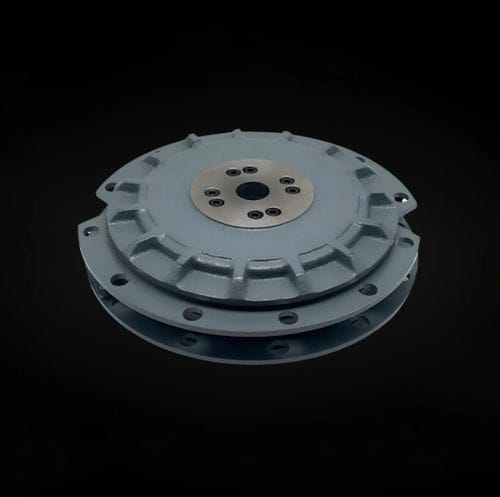

Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring
Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring
Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring - image - 2
Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring - image - 3
Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring - image - 4
Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring - image - 5
Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring - image - 6
Multiple-disc clutch and brake - S - IMA BRAKE SYSTEMS AND FRICTION MATERIAL INDUSTRY - pneumatic / hydraulic / spring - image - 7
Add to favorites
Compare this product

Characteristics

Type
multiple-disc
Operation
pneumatic, hydraulic, spring, mechanical
Applications
for tension control, for heavy-duty applications, for high-torque applications
Other characteristics
zero-backlash, low-inertia, flange-mounted, through-bore, modular
Torque

Min.: 80 Nm
(59.004972 ft.lb)

Max.: 19,000 Nm
(14,013.680836 ft.lb)

Rotational speed

Min.: 700 rpm
(4,398.2297 rad.min-1)

Max.: 3,200 rpm
(20,106.193 rad.min-1)

Description

IMA’s combined units complement the most well-known brands in the industry, are completely interchangeable and 100% made in Italy. The combined brake-clutches are the ideal solution for sectors with a high frequency of frictions/hour. The technical features of these units provide a moment of minimum inertia, essential in all those sectors where the point of inertia of a brake-clutch unit predominates over the rest of the machine. The variety of industrial sectors include metal pressing, the mining industry, the oil, gas and marine sector, where presses, servo presses, shears, searing machines, drawing machines, presses for forging, etc. can find the perfect brake-clutch. At its laboratory, Ima can assess the feasibility of reworking the worn/broken parts restoring new life into the brake at a cost of less than buying it new. Technical data 148-775 mm 325-1135 mm

Catalogs
