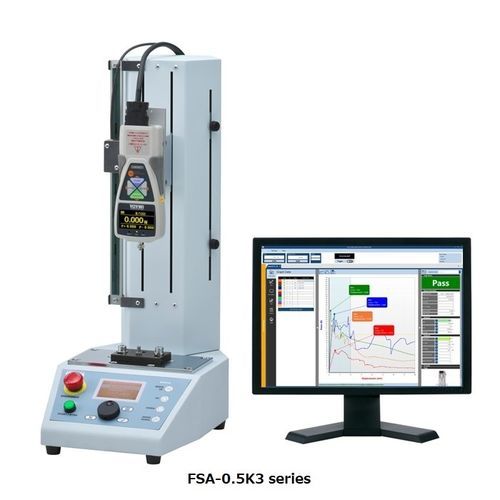

Displacement force test bench FSA series

buttonfor materialsfor laboratory

Force-Displacement Analysis Unit – FSA Series The FSA Series is a comprehensive testing solution that includes a force gauge, motorized test stand, connection cable, and dedicated software. It is designed to measure both displacement (deformation) and compression/tension forces, making it ideal for tactile testing and evaluating material characteristics. < Features > - Integrated Force & Displacement Analysis - The FSA Series offers a simple yet high-performance setup for analyzing force in relation to displacement. It is especially effective for evaluating hysteresis (zero reversion) in tactile tests and determining force at specific deformation levels in material testing. - High-Speed Data Acquisition - The included software enables smooth and precise graphing of force vs. displacement at up to 2000 Hz, ensuring accurate and detailed analysis. - User-Friendly Connectivity - Easily connect to a PC via USB for seamless data transfer and control. - Advanced Test Control Functions - Configure test parameters such as speed, pause duration, and number of repetitions (excluding the manually operated FSA-MSL model). - Compact & Desktop-Friendly Design - The unit’s compact form factor makes it suitable for desktop use in laboratories and production environments. < Lineup > FSA-MSL series: Lightweight, knob operation model as a portable tester up to 50N. FSA-0.5K2, -1K2, -2.5K2 series: Motorized vertical stand for up to 500N (FSA-0.5K2), 1000N (FSA-1K2), 2500N (FSA-2.5K2). FSA-0.5K3 series: New launched Motorized vertical stand for up to 500N. Test condition setting can be made via PC FSA-0.5HK2 series: Motorized horizontal stand for up to 500N FSA-1KE series: Top-of-range robust system for most accurate measurement with additional functions (control movement by displacement set value, etc.). Specifications - Accuracy: +/- 0.2% F.S. +/- 1 digit (force), +/- 0.1mm +/- 1 digit (displacement -with no load) See our website or catalog below for further information. Related Products We offer almost 100 of ready-made attachments to fit a wide range of tension and compression testing applications. See our website below for further information.
