Force test bench FSA-Q series

deformationdisplacement forcemotorized

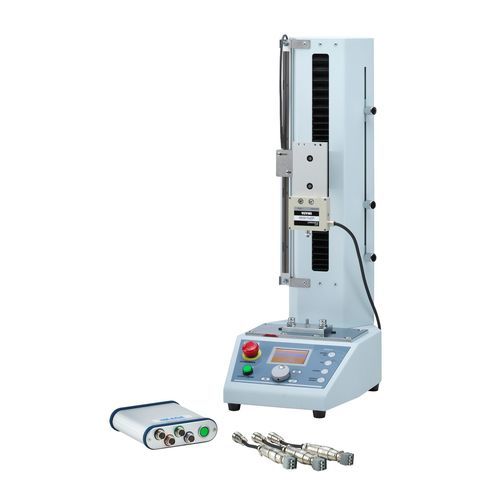

Force-Deformation Evaluation Unit FSA-Q series A force-deformation evaluation unit that measures force, displacement, and strain (3 locations) simultaneously. This allows for a multifaceted evaluation of a sample's deformation when force is applied. *Individual product selection is not required for this unit. The strain gauge is sold separately. Feature ・Able to simultaneously measure force, strain, and displacement. It can track sudden changes in force and strain accurately with high-speed sampling at 2000 Hz. ・The motorized test stand, featuring high rigidity, ensures precise displacement measurement. ・The dedicated software displays real-time measurement values, supports continuous data recording, and allows for time graph plotting. ・The dedicated software is available for download from user support website; IMADA Connected (user registration and QSMA-400 product registration required). ・Various measurements can be conducted using optional attachments (sold separately).
