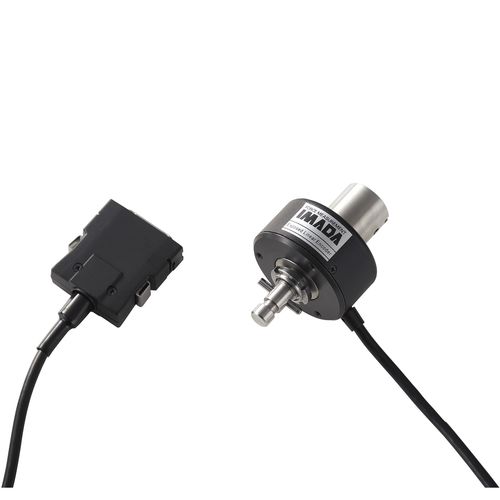

Angle measuring system AMK series

torquedirect-contact

AMK series is an angle meter kit for torque-angle measurement designed to be connected with handheld digital torque gauge, HTGA series. Features -Attachment for HTGA series -Measure angle from 0.1 to 9999.9 degrees Specifications [AMK-360 (For standard Accuracy: +/-0.2 degree Resolution: 0.1 degree Angle Measurement Range: 0.1 to 9999.9 degrees Length of cable: Approx. 1m Weight: Approx. 130g (excluding cable and connector) Mountable Torque Gauge: HTGA series ((HTGA-2N/5N/10N), eHT series (eHT-2N/5N/10N) [AMKL-360 (for low torque 0.5 to 2N-m Accuracy: +/-0.2 degree Resolution: 0.1 degree Angle Measurement Range: 0,1 to 9999.9 degrees Length of cable: Approx.1m Weight: Approx. 100g (excluding cable and connector) Mountable Torque Gauge: HTGA-0.5N/2N, eHT-0.5N/2N
