Sensor holder Sensor Holder SHT-5N
testtorque

sensor holder
sensor holder
sensor holder
Add to favorites
Compare this product


Characteristics

Applications
sensor, test, torque

Description

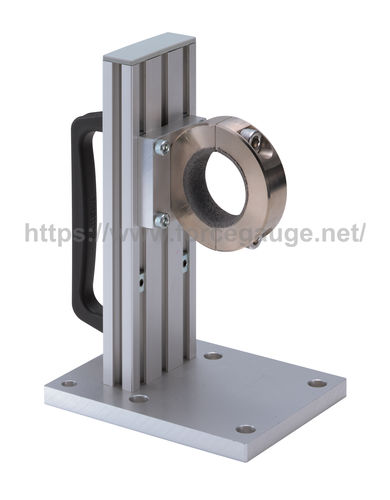

Sensor Holder SHT-5N is designed to hold the sensor of torque gauge HTGS/HTGA series. It is a simple torque test stand which ensures stable torque measurements. Combine it with a torque gauge HTGS/HTGA series and attachment to complete a testing system. Features - Designed to hold the handheld type digital torque gauge horizontally or vertically - Highly repeatable torque measurement by fixing the sensor - Attachable to your equipment by screws Measurement examples - Turning force (torque) of padlock keys - Opening torque testing of eye drop caps Specifications - Capacity: 5N-m (500N-cm)* - Weight: Approx. 1100g *Please do not apply more than 5N-m even when the capacity of the torque gauge is over 5N-m. See our website or catalog below for further information. Related Products - Handheld digital torque gauge HTGS/HTGA series SHT-5N is designed to use with these torque gauge HTGS/HTGA series, offering high functionality and accuracy with 50N-cm to 10N-m(1000N-cm) capacity. - Pin chuck HT-DC-6.5 This attachment is designed for HTGS/HTGA to clamp samples such as wire and round-bar samples with three claws. - M10 adaptor HT-AD-M10 This adaptor with M10 screw is designed to mount your own attachment to HTGS/HTGA torque gauge. - Small table HT-ST This table attachment is suitable for fixing small samples such as eye drop lids and padlocks. More attachments are available to suit your samples. See the catalog below for details. With our know-how accumulated over 70 years, we are confident in offering the best force measurement solution for your needs. Please contact us for any enquiries.

Catalogs

No catalogs are available for this product.

See all of IMADA‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

Global Industrie 2024
Global Industrie 2024

25-28 Mar 2024 París Villepinte (France) Stand 5H8
