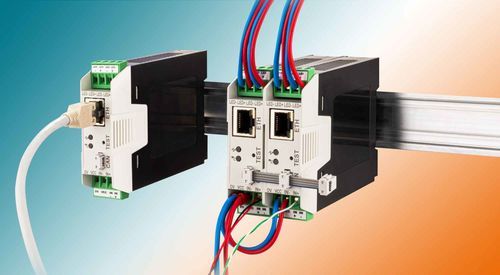

Integrated programmable controller FlashBox Pro

DIN railEthernetreal-time

The FlashBox Pro from IMAGO is a universal LED flash controller engineered for high-current LED lighting and demanding image-processing illumination. It provides real-time adjustment and networked multi-unit operation via Ethernet, extending IMAGO's FlashBox range with enhanced flexibility for industrial applications.

Key features and versatile applications:

• Real-time adjustment: Lighting parameters can be modified during operation to meet dynamic imaging or production requirements.
• Multi-unit communication: Multiple FlashBox Pro units share a single Ethernet interface for synchronized operation without needing an external Ethernet switch.
• Easy mounting and integration: Enclosure clamps to a DIN rail for quick installation; the PCB can be integrated into OEM/ODM LED fixtures.

Product overview:

• Controls high-current LED loads up to 10 A for intensive lighting tasks.
• Operates from 24 V DC power supply.
• Parameters configured via Ethernet using a web browser interface for convenient local or remote setup.
• Complements IMAGO's FlashBox and FlashBox Quad portfolio for image-processing and industrial lighting workflows.

Technical specifications:

• Maximum LED current: up to 10 A
• Power supply: 24 V DC
• Interface: Ethernet with web browser-based configuration
• Operation: real-time adjustment during operation
• Networking: multi-unit communication over shared Ethernet (no external switch required)
• Mounting: DIN rail clampable housing; PCB integration option for ODM
• Target applications: industrial LED lighting control, image-processing lighting scenarios
