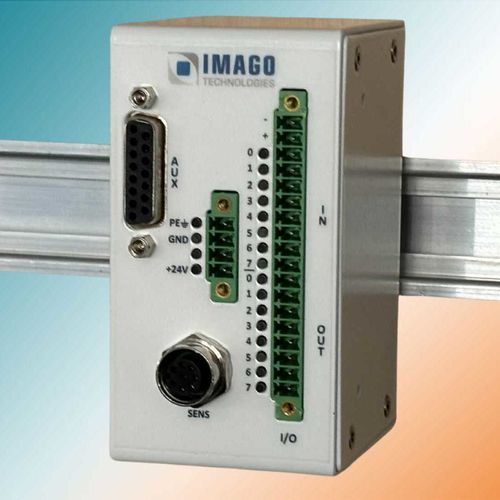

Digital I/O module

serialRS-4228-I/O

Overview:
The IO Expansion box extends physical interfaces and adds real-time controllers to expand connectivity of IMAGO's Vision Sensor PV3, enabling full use of the compact embedded vision system in confined machine spaces and facilitating integration in industrial vision applications where installation space is limited.

Key features:

• Expanded I/O: 8 digital inputs and outputs for integration and control of additional components.
• RS422 interface: RS422 serial interface suitable for line-scan setups and robust communication with external hardware.
• Real-time controllers: Built-in real-time controllers for fast, deterministic data processing required by industrial processes.
• Compact-space design: Form factor and connector arrangement complement the matchbox-format Vision Sensor PV3 for installation in tight machine environments.

About the Vision Sensor PV3:

• Extremely compact embedded PC with integrated camera in a matchbox format designed for installation in very tight machine spaces.
• Support for up to 5 MP camera sensor resolution.
• Quad-Core processing power suitable for a wide range of vision applications.
• M12 connectors with short, offset cables to optimize limited installation space and provide flexible mounting options.

Technical specifications:

• Manufacturer: IMAGO
• Product: IO Expansion box for Vision Sensor PV3
• Expanded interfaces: 8 digital inputs and outputs
• Communication: RS422 interface
• Processing support: Integrated real-time controllers
• Intended use: Combine with Vision Sensor PV3 for vision solutions in confined machine environments (quality control, robotics, manufacturing automation)
• Compatibility: Designed to complement the Vision Sensor PV3 (matchbox format, up to 5 MP, Quad-Core CPU, M12 connector arrangement)
