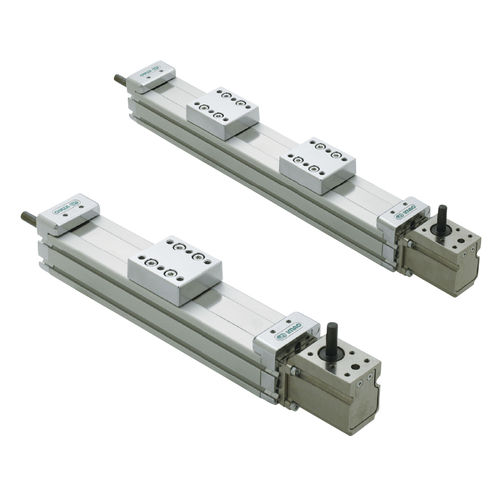

Linear actuator MAG5040DS, MAG5040DW

trapezoidal screwanodized aluminumsynchronous

Linear Units
Ready-to-use manual linear actuators with built-in lead screw and guide.
Unitized design eliminates parts selection and assembly, ideal for quick positioning tasks.


Mechanical Linear Actuators With Adjustable Gearbox (Synchro-use) | MAG5040DS
- Features -

• Pre-assembled linear actuators for easy installation—no need for parts selection or assembly.
• Single-carriage with a coupling shaft for synchronized operation across two units.
• Includes a gearbox that allows adjustment of the control shaft orientation.
• 100 mm to 500 mm stroke options.

- Specifications -

• Stroke (mm): 100 - 500
• Body Length (mm): 201 - 601

Mechanical Linear Actuators With Adjustable Gearbox (Dual Carriage, Synchro-use) | MAG5040DW
- Features -

• Pre-assembled linear actuators for easy installation—no need for parts selection or assembly.
• Dual-carriage type with coupling shaft for synchronized operation across two units.
• Includes a gearbox that allows adjustment of the control shaft orientation.
• 100 mm or 150 mm stroke per carriage.

- Specifications -

• Stroke (mm): 100 / 150
• Body Length (mm): 356 / 456
