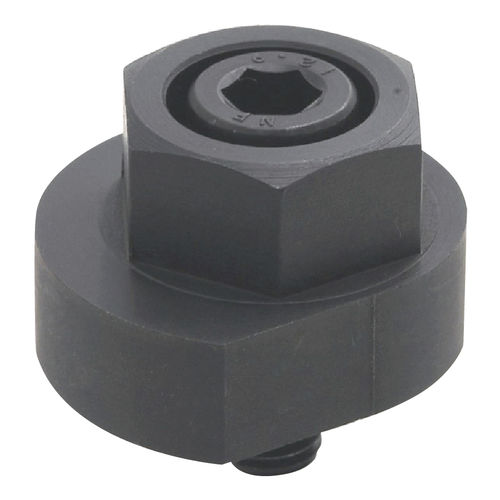

Manual clamping device BJ161machiningworkpiecesteel
Add to favorites
Compare this product
Characteristics
- Type
- manual
- Applications
- machining, workpiece
- Other characteristics
- steel, miniature, cam
- Clamping force
Max.: 9,300 N
Min.: 5,200 N
Description
Side Clamps
Manual side clamps grip the side of a workpiece to keep the top surface clear for machining.
Strong downward force prevents the workpiece from lifting during operation.
Cam Clamps
- Features -
Manual side clamps grip the side of a workpiece to keep the top surface clear for machining.
Strong downward force prevents the workpiece from lifting during operation.
Cam Clamps
- Features -
- Compact cam clamps with a spiral cam mechanism for fast and strong clamping.
- Long clamping stroke accepts variations in workpiece size.
- Clamping Force (kN): 5.2 - 9.3
- Dia (mm): 24 - 34
- Height (mm): 16 - 24
