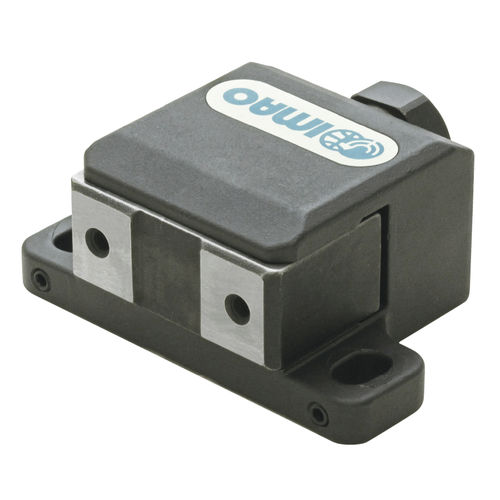

Manual clamping unit QLSCH
machiningworkpieceflange

Manual clamping unit - QLSCH - Imao Corporation - machining / workpiece / flange
Manual clamping unit - QLSCH - Imao Corporation - machining / workpiece / flange
Manual clamping unit - QLSCH - Imao Corporation - machining / workpiece / flange - image - 2
Add to favorites
Compare this product
Go to the Imao Corporation website for more information

Characteristics

Type
manual
Applications
machining, workpiece
Other characteristics
flange, steel

Description

Side Clamps
Manual side clamps grip the side of a workpiece to keep the top surface clear for machining.
Strong downward force prevents the workpiece from lifting during operation.


Side Clamps
- Features -
  • Side clamps with a ground clamping surface that moves forward by tightening the hex head, applying downward force to the workpiece.
  • High clamping force is ideal for heavy-duty machining applications.
  • Smooth clamping surface is suitable for machined surfaces.
- Specifications -
  • Clamping Force (kN): 9 / 14
  • Flange (mm): 75 / 100
  • Height (mm): 32 / 40
