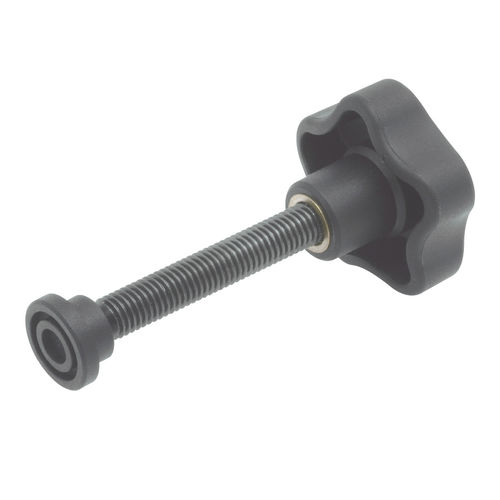

Threaded knob CBWPlobepolyamidepolypropylene
Add to favorites
Compare this product
Characteristics
- Type
- threaded
- Configuration
- lobe
- Material
- polyamide, polypropylene, steel
- Other characteristics
- with stud
Description
-Feature-
-The plastic pad allows clamping a soft-material workpiece. Comes with a STK-N knob.
-The knob is glued to the screw
-How To Use-
The plastic pad is not fitted to the screw when shipped. It can be fitted by pushing over the screw's ball end.
-Thread Size-
M6×1
M8×1.25
M10×1.5
M12×1.75
-Materials-
Knob: Polypropylene plastic, Black matte
Screw: Steel (SUM22L), Black oxide finish
Pad: Polyamide (6 nylon) plastic, Black
-Datasheet-
https://www.imao.co.jp/files/on-cat/pdf/en/cbwp-e.pdf
