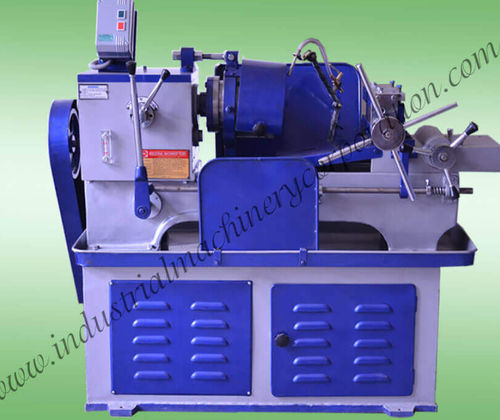

Horizontal threading machine

mechanicalhigh-speedfor rebar

Product overview
A Rebar Threading Machine is used to thread the external surface of rebars (TMT bars) for mechanical splicing or coupling. Thread cutting chasers are the tooling elements that simultaneously form the thread profile and remove ribs on TMT bars. IMC TMT bar tangential chasers are manufactured from imported High-Speed Steel (HSS) to meet strict metallurgical standards. Controlled heat treatment using imported equipment and in-process testing ensures consistent thread geometry within specified tolerances.

Range of thread cutting die heads

• 1/4" to 1" (6MM to 25MM)
• 3/8" to 1.1/2" (10MM to 40MM)
• 1/2" to 2.1/2" (12MM to 65MM)

Available options / Typical customer selectable parameters

• Thread type: METRIC, BSW, Others, Don't know exactly
• Thread length required: UP TO 4" (100MM), UP TO 12" (300MM), UP TO 24" (600MM), Others, Don't know exactly
• Diameter of the job: 1/4" to 1" (6MM to 25MM), 3/8" to 1.1/2" (10MM to 40MM), 3/8" to 2" (10MM to 50MM), 1/2" to 2.1/2" (12MM to 65MM), Others, Don't know exactly
• Purchase timing options: Immediately, Within a week, Within 15 days, Within a month, Others

Notes on manufacturing & quality

• Chasers made from imported High-Speed Steel (HSS) meeting metallurgical standards.
• Heat treatment performed with imported heat-treatment plant and testing equipment to ensure durability and consistent thread quality.
• Engineered for continuous industrial operation and repeatable thread production.

Technical specifications

• MODEL: 1/4" TO 1" (6MM to 25MM) (BED TYPE)
  3/8" TO 1.1/2" (10MM to 40MM) (BED TYPE)
  1/2" TO 2.1/2" (12MM to 65MM) (BED TYPE)
• Saddle movement: 10"
  13"
  22"
• Spindle speed range (RPM): 75 - 140
  75 - 140
  45 - 90
• Number of spindle speeds: 2
  2
  2
• Threading capacity: 1/4" to 1"
  3/8" to 1.1/2"
  1/2" to 2.1/2"
• Production per hour: 60-80
  60-80
  70-90
• H.P. required: 3 H.P.
  3 H.P.
  7.5 H.P.
• Lead screw: Optional
  Optional
  Optional
• Weight (KG) approx.: 500
  550
  990
