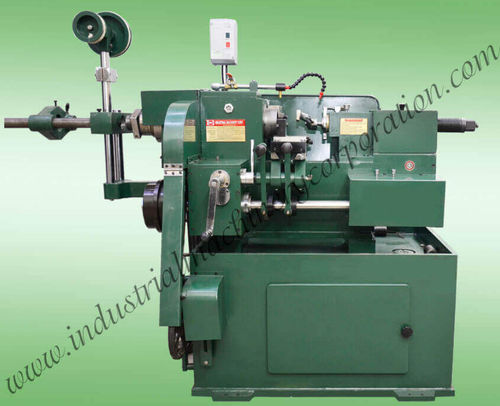

PLC-controlled drilling and boring machine IMC-ARC series

for steelhigh precisionhigh-speed

Product overview
The Automatic Rebar Coupler Drilling and Cutting Machine IMC-ARC Series drills and cuts rebar couplers to the required length for fast, repeatable production. Typical cycle time for drilling and cutting a coupler is approximately 2–3 minutes. The machine is designed for integration into high-speed coupler manufacturing processes within rebar production lines.

Construction & features
Industrial-grade construction with a compact, serviceable layout to deliver precise machining, stable operation and simplified maintenance. Modular design enables quick changeover between IMC-ARC models and facilitates inline installation.

Specifications (table)
Model No.: IMC-ARC-25 MM | IMC-ARC-32 MM | IMC-ARC-40 MM | IMC-ARC-50 MM | IMC-ARC-60 MM | IMC-ARC-70 MM
Max. Capacity Round Bar: 22 mm | 30 mm | 37 mm | 47 mm | 56 mm | 65 mm
Hexagonal: 22 mm | 25 mm | 32 mm | 47 mm | 56 mm | 65 mm
Square: 18 mm | 24 mm | 27 mm | 36 mm | 42 mm | 45 mm
Maximum Turning Length: 40 mm | 45 mm | 50 mm | 60 mm | 70 mm | 76 mm
Maximum Drill: 40 mm | 50 mm | 55 mm | 60 mm | 65 mm | 70 mm
Electric Drive Motor: 2 HP 1440 RPM | 3 HP 1440 RPM | 3 HP 1440 RPM | 5 HP 960 RPM | 5 HP 960 RPM | 7 HP 960 RPM

Technical features

• Models: IMC-ARC-25 MM, IMC-ARC-32 MM, IMC-ARC-40 MM, IMC-ARC-50 MM, IMC-ARC-60 MM, IMC-ARC-70 MM
• Max. capacity (round bar) per model: 22 mm / 30 mm / 37 mm / 47 mm / 56 mm / 65 mm
• Max. capacity (hexagonal) per model: 22 mm / 25 mm / 32 mm / 47 mm / 56 mm / 65 mm
• Max. capacity (square) per model: 18 mm / 24 mm / 27 mm / 36 mm / 42 mm / 45 mm
• Maximum turning length per model: 40 mm / 45 mm / 50 mm / 60 mm / 70 mm / 76 mm
• Maximum drill diameter per model: 40 mm / 50 mm / 55 mm / 60 mm / 65 mm / 70 mm
• Electric drive motor per model: 2 HP 1440 RPM / 3 HP 1440 RPM / 3 HP 1440 RPM / 5 HP 960 RPM / 5 HP 960 RPM / 7 HP 960 RPM
• Typical cycle time for drilling and cutting: approximately 2–3 minutes
• Intended application: high-speed coupler making process for rebar couplers
