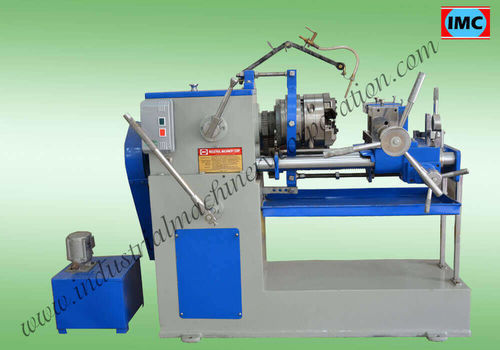

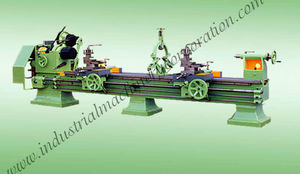

PVC pipe threading machine

for plastic pipes

Product Overview
The IMC PVC Pipe Threading Machine cuts external threads on PVC pipes using a tangential chaser and rotating die head. It supports parallel and taper thread forms including BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME and BSF, enabling compatibility with common pipe fittings.

Main Components

• Base
• Head stock
• Saddle
• Pillar-type clamping vice (bed or pillar)
• Die head

Design and Workmanship
IMC thread cutting machines are engineered for industrial pipe preparation and manufactured to maintain thread tolerances required for mechanical and hydraulic connections.

Head Stock
Heavy-duty geared head box with high-quality casting to support spindle bearings; gear-type lubrication and three extra heavy-duty bearings ensure sustained operation under load.

The Bed
Pillar-type bed with two precision steel pillars, finished and hard chrome plated for wear resistance and alignment stability.

The Saddle
The saddle runs on the pillars with precise alignment to the head stock to ensure concentricity during threading operations.

The Apron
The apron transmits movement to the saddle via steel rack-and-pinion arrangements; gears are manufactured from high-grade steel for durability.

Vice Jaws
Alloy-steel vice jaws, heat treated and fitted to the saddle in a heavy-duty box-type vice; saddle movement controlled by a screw for accurate clamping and positioning.

Range of IMC PVC Pipe Threading Machines and Die Heads
Available capacities: 1/4" to 1"; 3/8" to 1.1/2"; 1/2" to 2.1/2". Model families cover 10 mm up to 250 mm pipe diameters.

Technical Table
Model | 3/8" to 2" (10MM to 50MM) | 1/2" to 2.1/2" (12MM to 65MM) | 1" to 4" (25MM to 100MM) | 2.½" to 6" (65MM to 150MM) | 4" to 8" (100MM to 200MM) | 8" to 10" (200MM to 250MM)
Saddle Movement | 10"-12" | 16" | 10"-12" | 8" | 8" | 8"
Spindle Speed Range | 127-180 | 60-90-120 | 40-75-115 | 25-50 | 25-50 | 10-20-30
Number of Spindle Speed | 2 | 3 | 3 | 2 | 2 | 3
Threading Capacity | 3/8" to 2" | 1/2" to 2.1/2" | 1" to 4" | 2.1/2" to 6" | 4" to 8" | 8" to 10"
Production per Hour | 100-120 | 70-90 | 35-40 | 20-25 | 15-20 | 15-20
H.P. Required | 3 H.P. | 7.5 H.P. | 12.5 H.P. 960 | 15 H.P. 960 | 20 H.P. 960 | 30 H.P. 960
Lead Screw | Provided | Provided | Provided | Provided | Provided | Provided
Weight (KG) Approx. | 550 | 990 | 1600 | 1900 | 2500 | 5000

Video
A product video demonstrating operation and setup of the PVC Pipe Threading Machine is available.

Technical specifications

• Supported thread types: BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF
• Main components: Base, Head stock, Saddle, Pillar-type clamping vice, Die head
• Model ranges: 3/8"–2" (10–50 mm); 1/2"–2.1/2" (12–65 mm); 1"–4" (25–100 mm); 2.5"–6" (65–150 mm); 4"–8" (100–200 mm); 8"–10" (200–250 mm)
• Saddle movement: up to 16" depending on model
• Spindle speed ranges (by model): 127–180; 60–90–120; 40–75–115; 25–50; 25–50; 10–20–30
• Number of spindle speeds: 2 or 3 depending on model
• Production rate: 15–120 pieces/hour depending on model
• Power: from 3 H.P. up to 30 H.P. (some models specify 960 rpm)
• Lead screw: provided on all models
• Approx. weight: 550–5000 kg depending on model
