Automatic pipe threading machine

for plastic pipesPVCmanual

Product overview

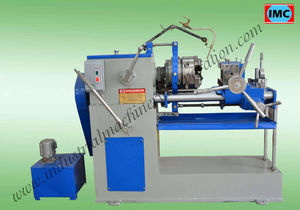

Industrial lathe specifically configured for PVC pipe threading. IMC Extra Heavy Duty model range covers pipe diameters and lengths commonly used in plumbing and assembly lines, with capacities from 50 mm to 250 mm for 3 m and 4 m pipes. Designed for production environments requiring fast loading, reliable thread quality and simultaneous inside/outside threading.

Construction
Robust cast-iron construction with precision-ground components ensures sustained accuracy and low maintenance in continuous operation. Machine architecture supports repeated threading cycles while maintaining concentricity and surface finish suitable for downstream joining operations.

Key components

• BED: High-grade cast iron bed with cross ribs and three inverted V-ways, removable gap for large swing.
• HEAD STOCK: Alloy-steel main spindle with ground finish; supported in bush or taper roller bearings for stable rotation.
• SADDLE: Hand-scraped V-ways aligned with bed and head stock; manual and automatic traverse via steel rack and pinion; cross and top slide graduated for taper work.
• TOOL-POST: One-piece steel tool-post accommodating four tools, swivelable to required angles.
• APRON: Enclosed gearing and half-nut for controlled saddle movement; all gears in hardened steel.
• TAIL STOCK: Heavy-duty design with long bearing in barrel to ensure true alignment during threading and support operations.
• THREE-SPEED GEAR BOX: Coarse, medium and fine cutting ranges; lead screw for accurate thread pitches with engagement/disengagement controls; handles for speed selection.

Standard accessories supplied with the machine

• Face plate — one
• Catch plate — one
• Centers — two
• Center adapter — one
• Steady rest — one
• Follow rest — one
• One set of 23 gears
• Threading dial — one
• Motor pulley and motor attachment

Available options (selection fields shown on page)

• Max thread length required: 2" / 3" / 4" / Others
• Diameter of the job: 1/4" to 1" (6 mm to 25 mm) / 3/8" to 1.1/2" (10 mm to 40 mm) / 1/2" to 2.1/2" (12 mm to 65 mm) / 1" to 4" (25 mm to 100 mm) / 2.1/2" to 6" (65 mm to 150 mm) / Don't know exactly / Others
• Purchase timeframe: Immediately / Within a week / Within 15 days / Within a month / Others / Don't know exactly
• Expected price: free text input

Additional notes

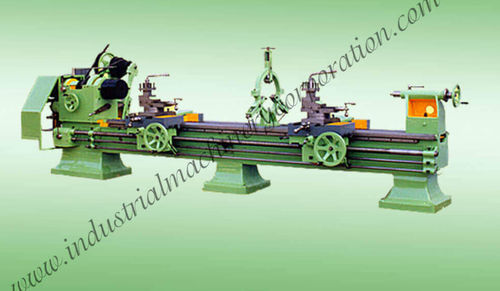

Special-purpose variants available with quick-change collet system and double saddle to enable two operators to perform inside and outside threading simultaneously, increasing throughput and reducing handling time.
