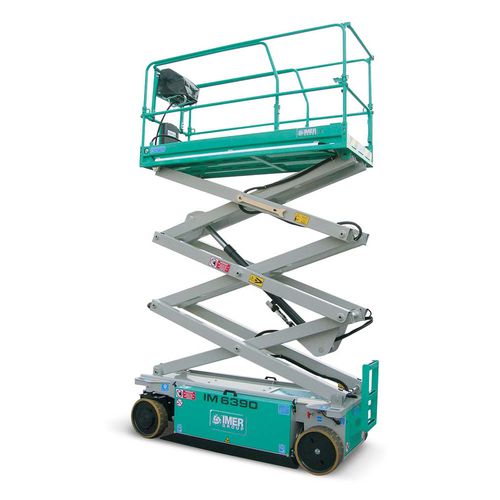

Self-propelled scissor lift IM 90 series
electricindoor/outdoor

self-propelled scissor lift
self-propelled scissor lift
self-propelled scissor lift
self-propelled scissor lift
self-propelled scissor lift
self-propelled scissor lift
self-propelled scissor lift
Add to favorites
Compare this product


Characteristics

Portability
self-propelled
Motor type
electric
Applications
indoor/outdoor
Working height

8.3 m, 13.9 m
(27'02" , 45'07" )

Lift capacity

220 kg, 400 kg
(485 lb, 881.8 lb)

Description

Traction allowed at max. height and with full rated load. For indoor use and for indoor/outdoor use Standard equipment Electric front wheel drive motors Negative electromagnetic parking brakes 90° wheel steering Manual deck extension 1.3 m Manual emergency lowering device Cylinder holding valve Traction batteries 24V Battery charger with automatic switch-off Audible motion alarm, horn, hour meter Inclinometer with motion cut-out and alarms Mechanical wheel drive release for emergency hauling Cushioned non-marking tyres Electrical scissor protections Pothole protection Battery control system with low-voltage cut-out protection Fast action foldable railings Overload sensor CE - EN 280 marking 230V cable predisposition Flashing beacon Control panel on the platform with capacitive buttons, proportional controls and diagnostics Benefits Electric drive motors: less consumption, longer cycle times All the components are contained inside the chassis and are easily accessible, nothing remains outside Drivable at full height Excellent speed and gradeability Maximum load capacity and maximum number of people are totally authorized on the extension of the platform. Rigid chassis and scissor pack
