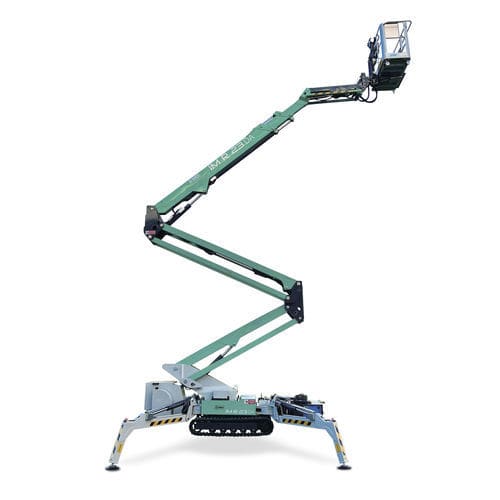

Crawler articulated boom lift IM R 23 DA
hydraulicdiesel engineindoor

crawler articulated boom lift
crawler articulated boom lift
Add to favorites
Compare this product


Motor type
diesel engine, hydraulic
indoor, rough terrain
Other characteristics
Working height

22.85 m
(74'11" )

Lift capacity

230 kg
(507.1 lb)


Double articulation boom with active jib. Double stabilization area. Hydraulically adjustable tracks width. Petrol/diesel engine Standard equipment • Automatic outriggers levelling with electronic inclinometer • Outrigger pads (Ø 200 mm) • Emergency hand pump • Cylinder holding valve • Electronic hour meter • Load cell • Hydraulic Jib • Rubber tracks • Hydraulically adjustable tracks width • Double speed traction • 230V - 16 A electro-pump for indoor use • Air / Water outlet in the platform • 230V - 16 A outlet in the platform • Honda iGX800 petrol engine – 20.1 HP 3600 rpm Yanmar 3TNV70 diesel engine – 20.8 HP 3600 rpm • Wireless radio-control box Benefits Double articulation boom with active jib for a high operability in all construction site conditions. Double stabilization area for greater flexibility of use in various work situations. Hydraulically adjustable tracks width: more stability and traction to move around the building site or rough terrain. State-of-the-art removable control panel: fast and versatile use of the machine. Proportional and simultaneous electro-hydraulic controls: efficiency and safety for operators. Automatic outriggers levelling: maximum easiness of use and safety. Permanent weight control device for improved safety and performance. Slewing 360° (not continuous): outstanding aerial accessibility in any work situation. Basket rotation ± 62°: complete placement on working site in any condition. Compact size, with limited overall outrigger footprint. Engine guarded for safety and working protection. Aluminium basket 1.40 x 0.75 x 1.10 m. Innovative design with fully enclosed structure.
