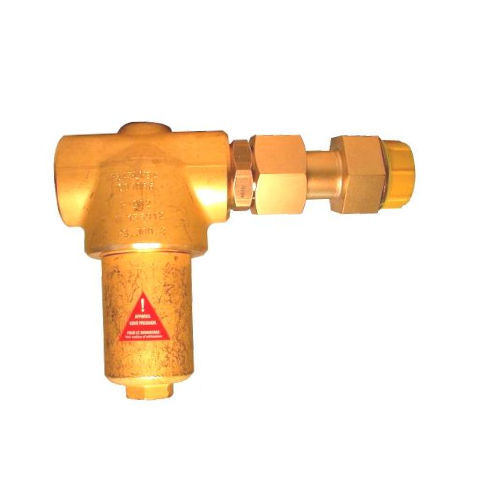

Gas filter F545

basketpressureprocess

IMF filters are manufactured according 2 configurations: in "T" and inline. They are designed for filtration of gases and particularly to protect components as reducing valves, back pressure, stop valves, solenoid valves, pneumatic valves and so on… IMF filters are supplied with sintered stainless steel element, SS clothed element or sintered bronze element. We do recommend sintered bronze element for Oxygen service. Other material and filtration level can be supplied upon request. Filters in "T" are realized with an element perpendicular to the media circulation and provide the following advantages: • Shorter length • Possibility to dismount the bottom part of the filter and thus replace the element without dismounting of the filter. • Filters F509 and F545 can be supplied with a swivelling male outlet port to be connected directly to the inlet port of a component. So, there is no risk of fitting pollution.
