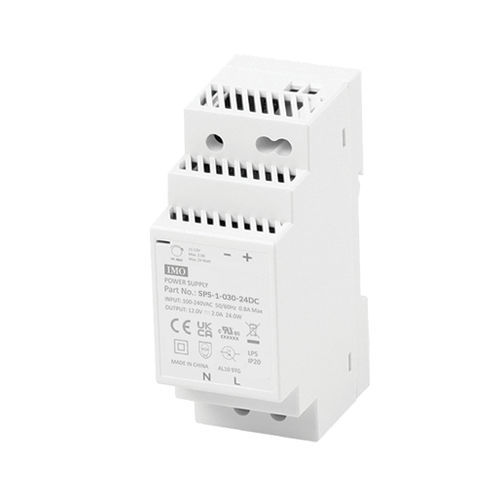

AC/DC power supply SPS series

switchingDIN railcompact

IMOs range of industrial Power Supplies have all been engineered to deliver reliable, high quality DC power to a control panel or automation system with the introduction of a range of compact switching power supply with universal AC and DC voltage inputs, short circuit protection, and a range of output DC voltage options. These power supplies operate at high efficiencies, making them an exceptionally reliable power source for components such as, Programmable Logic Controllers (PLC), sensors, relays, contactors, timers, temperature controllers, process controllers and HMIs, all of which are available from IMO and all benefit from our 3-year warranty. - Universal input voltage - Single and three phase versions available - Short circuit protection - 3 year warranty Key Features • Class 2 (Limited Power Source) • Universal input 90-264VAC / 127-370VDC • Class II Isolation • 100% full load burn-in test • Modular design • IP20 rated protection General Specification • Approval cURus - Class 2 • Isolation Voltage 3000VAC / 4242VDC • Isolation Resistance 100MΩ @ 500VDC • Ambient Temperature -20 to +70°C • Derating (50 to 70°C ) 2.5%/°C • Storage Temperature -40 to +85°C • Relative Humidity 20 to 90% RH • Cooling Free air convection • Dimensions 90 x 18 x 58mm 90 x 35 x 58mm • Weight 78g ; 120g • Case Material : Plastic Input Specifications • Rated Input Voltage 85-264VAC or 120-370VDC • Line Frequency 47 to 63Hz • Inrush Current (115/230VAC) 25/45A Output Specifications • Output Voltage Accuracy ±1% • Minimum Load 0% • Line Regulation ±1% • Load Regulation ±1% • Turn On Time 2000ms at full load ; 500ms at full load • Voltage Fall Time 80ms • Voltage Rise Time 80ms
