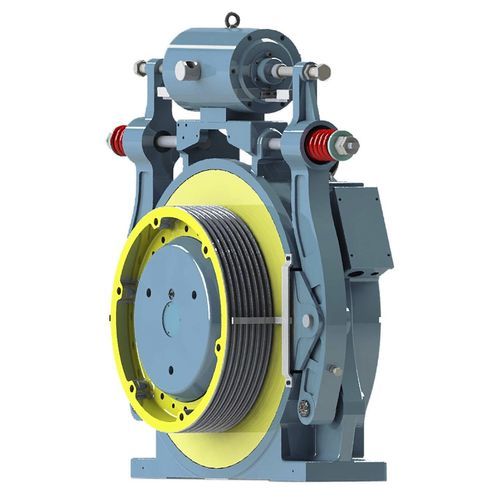

AC motor ACPM 460 Series

asynchronousmaintenance-freepermanent magnet

Unlike traditional induction motors that lose efficiency at lower speeds, Imperial Electric gearless AC machines provide unusually capable low speed, high torque operation -and consume up to 40% less power than traditional asynchronous motors. Imperial Electric gearless AC machines are also noticeably quieter than the competition and are nearly maintenance-free. With a compact, sleek design and extreme reliability, it is no wonder that the Imperial Electric Gearless ACPM Machines are a favorite in the industry. All models are UL/CSA CUS Certified. Specifications: • Up to 3,500 lbs. capacity up to 400 fpm - 2:1 • Up to 7 - 10mm ropes • Sheave diameter is 15.75 inch-469, 17.32 inch-503 • Sheave shaft load: 8000 lbs-469 • Machine weight: - 469: 1,060 lbs. • Dual independent brake system holds 125% rated capacity • Overhead MRL application only
