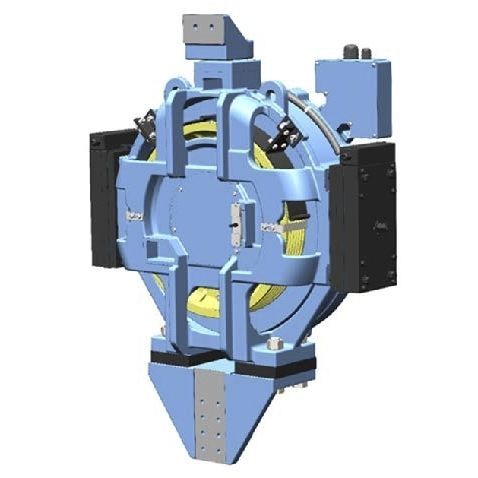

Asynchronous motor ACPM 540 Series

ACpermanent magnetcompact

Unlike traditional induction motors that lose efficiency at lower speeds, Imperial Electric gearless AC machines provide unusually capable low speed, high torque operation -and consume up to 40% less power than traditional asynchronous motors. Imperial Electric gearless AC machines are also noticeably quieter than the competition and are nearly maintenance-free. With a compact, sleek design and extreme reliability, it is no wonder that the Imperial Electric Gearless ACPM Machines are a favorite in the industry. All models are UL/CSA CUS Certified. Available in one frame size, frame 543. Specifications: • 1,000-2,500 lbs. capacity up to 350 fpm - 2:1 roping • 3,000-4,000 lbs. capacity up to 175 fpm 4:1 roping • 18.9" drive sheave • Up to: 5-10 mm ropes • Sheave shaft load: 7,000 lbs. • Dual independent brake system holds 125% rated capacity • Overhead application only • Machine weight: 960 lbs.
