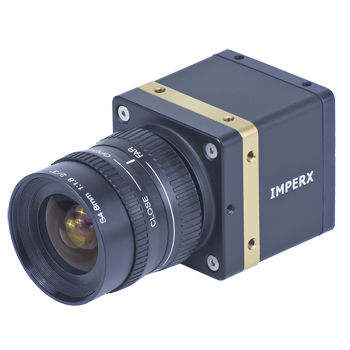

Analog camera B1410

spark optical emissionfull-colormonochrome

The B1410 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high quality images with powerful features and flexibility. The camera has a small size, light weight, and is built around the SONY ICX-285 Interline Transfer CCD image sensor which provides an image resolution of 1360 x 1024 and delivers up to 30 frames per second with a 2/3" optical format. B1410 is available with Camera Link® Base (PoCL), GigE Vision®, PoE and CoaXPress output. • Resolution : 1360 x 1024 • Maximum Resolution : 1392 x 1040 • Sensor : ICX-285 EXview HAD CCD • Sensor Format : 2/3" optical format • Interfaces : Camera Link® Base (PoCL), GigE Vision, PoE, CoaXPress • Frame Rate Standard Clock : 40 MHz / 23 fps • Frame Rate Overclocked : 54 MHz / 30 fps • Output Format : Mono CCD: 8, 10, 12, 14-bit (Single only) • : Color CCD: 8, 10, 12, RGB 24 • Gain Control : Preamplifier, standard (0-36dB), digital • Offset : Analog and digital • RGB Gain and Offset : Manual • Shutter Speed : 1/250,000 to 1/23 sec (nom) • Exposure Control : Manual, auto, external • Double Trigger (PIV) Interframe : 200 nanoseconds • External Inputs/Outputs : 2 IN, 2 OUT • Strobe Output : 2 strobes, programmable position and duration • Internal DDR Memory : 2Gb (256 MB) • On Board FIFO (GEV & PoE) : 1Gb (128 MB) • Vibration, Shock : 100g (20-200) HZ XYZ, 1000g • Environmental : -40˚C to +85˚C Operating, -50˚C to +90˚C Storage • MTBF : > 660,000 hours @ 40˚C • Regulatory : FCC 15 part A, CE, RoHS
