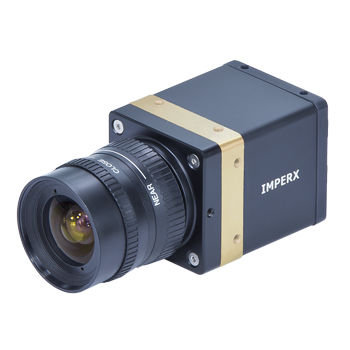

The B1620 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high quality images with powerful features and flexibility.
The camera has a small size, light weight, and is built around the TRUESENSE KAI-2020 Interline Transfer CCD image sensor which provides an image resolution of 1600 x 1200 and delivers up to 44 frames per second with a 1.0" optical format. B1620 is available with Camera Link® Base (PoCL), GigE Vision®, PoE and CoaXPress output.
• Resolution : 1600 x 1200
• Maximum Resolution : 1608 x 1208
• Sensor : KAI-2020, CCD
• Sensor Format : 1.0" optical format
• Interfaces : Camera Link® Base (PoCL), GigE Vision, PoE, CoaXPress
• Frame Rate Standard Clock : 40 MHz / 35 fps
• Frame Rate Overclocked : 50 MHz / 44 fps
• Output Format : Mono CCD: 8, 10, 12, 14-bit (Single only)
• : Color CCD: 8, 10, 12
• Gain Control : Preamplifier, standard (0-36dB), digital
• Offset : Analog and digital
• RGB Gain and Offset : Manual
• Shutter Speed : 1/100,000 to 1/35 sec (nom)
• Exposure Control : Manual, auto, external
• Double Trigger (PIV) Interframe : 200 nanoseconds
• External Inputs/Outputs : 2 IN, 2 OUT
• Strobe Output : 2 strobes, programmable position and duration
• Internal DDR Memory : 2Gb (256 MB)
• On Board FIFO (GEV & PoE) : 1Gb (128 MB)
• Vibration, Shock : 100g (20-200) HZ XYZ, 1000g
• Environmental : -40˚C to +85˚C Operating, -50˚C to +90˚C Storage
• MTBF : > 660,000 hours @ 40˚C
• Regulatory : FCC 15 part A, CE, RoHS
