Product overview
The Access Portal cluster controller is a modular, plug-and-play access control controller designed for distributed installations. It simplifies cabling and expansion by allowing multiple units to be linked so power and communication are shared across the cluster.

Cluster capability
One cluster controller supports up to eight reader modules and can manage up to 16 readers in total. Reader modules can be positioned up to 150 metres from the controller to provide flexible reader placement across a site.

Operation modes

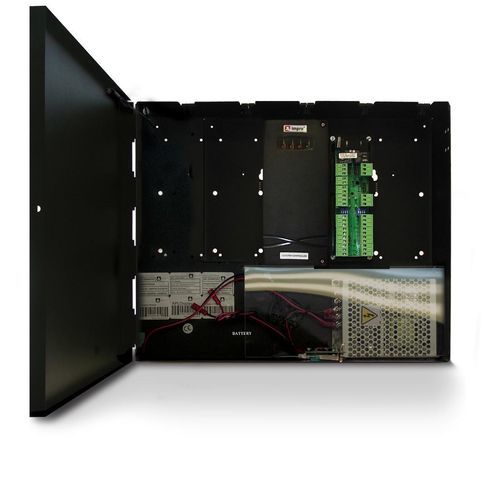

The controller can function as a stand-alone system with embedded software (no PC or license required) or be managed centrally from a server/workstation using the appropriate Access Portal software license. Enclosure options include a standard plastic housing or a secure metal enclosure for higher tamper resistance.

Traditional two door controller (iTRT)
The iTRT variant is a two-door controller that connects two readers. It supports full anti-passback (reader in/out) or operation for two doors using a reader-in and a push-button exit. The iTRT is compatible with both IXP and Access Portal systems.

Application Controller
The Application Controller extends the range for large sites and multi-building deployments. It offers high-capacity offline operation with an onboard transaction log of up to 1,000,000 transactions when the connection to the server is lost, and synchronises automatically once reconnected. An Application Controller can manage up to 64 cluster controllers and multiple zones for distributed control and redundancy.

Documents

• Intelligent Power Management Datasheet
• Cluster controller datasheet
• Distributed Controller Datasheet
• Distributed Controller EL Datasheet
• Distributed Controller EL / iTRT2 Datasheet (iTRT2 EL)
• Application Controller Datasheet

Features

• Available in metal enclosure or plastic housing
• Full offline functionality with automatic synchronization
• Cluster controller transaction storage: up to 100,000 transactions
• Application Controller transaction log: up to 1,000,000 transactions
• Built-in anti-tamper switch
• Compatible with all Access Portal modules and software
• Plug-and-play modular design for simple expansion

Technical specifications

• Cluster capacity: up to 8 reader modules per cluster controller
• Maximum readers managed: up to 16 readers per cluster controller
• Remote reader placement: up to 150 metres from controller
• Controller transaction storage: up to 100,000 transactions (cluster controller)
• Application Controller transaction log: up to 1,000,000 transactions
• Housings: plastic housing or secure metal enclosure
• Offline operation: full offline functionality with automatic server synchronisation on reconnection
• Anti-tamper: built-in anti-tamper switch
• Compatibility: works with IXP and Access Portal systems; compatible with Access Portal modules and software
• Expandable: plug-and-play modular hardware allowing simple expansion by adding units
