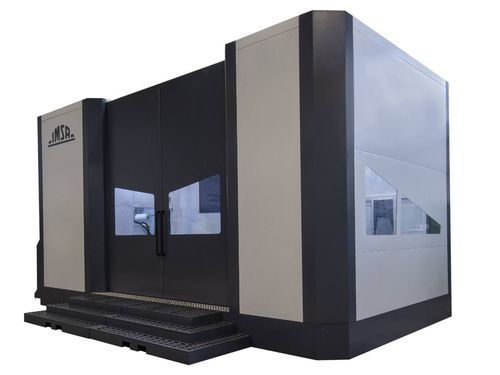

CNC drilling and milling machine MF1600S
deep holetraveling-columnfor molds

CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
CNC drilling and milling machine
Add to favorites
Compare this product


Characteristics

Type
CNC
Applications
deep hole
Other characteristics
traveling-column, for molds, rotating table, 3-axis, 4-axis, 5-axis
Drilling diameter

Min.: 5 mm (0 in)

Max.: 32 mm (1 in)

Description

The Gun Drilling and Milling Machine IMSA MF1600S has been designed to respond to the needs of manufacturers of tool and dies up to 20 tons in the mold making industry. MF1600S has a heavy built electrowelded structure that weighs as high as 38 ton. The machine concept is a T-shape: translating table and transversal movable column. A mold having a diameter as large as 3600mm can rotate inside the machine structure. The table has a traversing movement (X axis) of 3000mm and a rotation movement (B axis) infinite position. Orthogonal drilling (3-axes), with single angle (4-axes) and compound-angle drilling (5-axes machining) thanks to 360° table rotation and 30°-15° headstock inclination. Drilling depth in single operation: 1600 mm. Optimal drilling diameter range: 5-32 (40) mm solid. 4-Side Machining: the MF1600S has a long transversal movement and its table combines high loading capacity and smaller size. These features strongly facilitate 4-side machining with one workpiece setup. The 17 kW, 4.500 rpm ISO 50 spindle is both used for gun drilling and machining operations thanks to the exclusive "Swing on Top IMSA System". Specific IMSA functions for deep drilling process control: - Electronic work piece approach; - Electronic check against gun drill breaking, by spindle load monitoring; - Special coordinate transformation function for angled machining. The gundrill unit features as many as 6 key alignment points that minimize drill run out. Unlike the machines where the chip box and steadyrests are removable, IMSA accurately aligns these elements to the headstock structure during the machine assembling stage.

VIDEO
