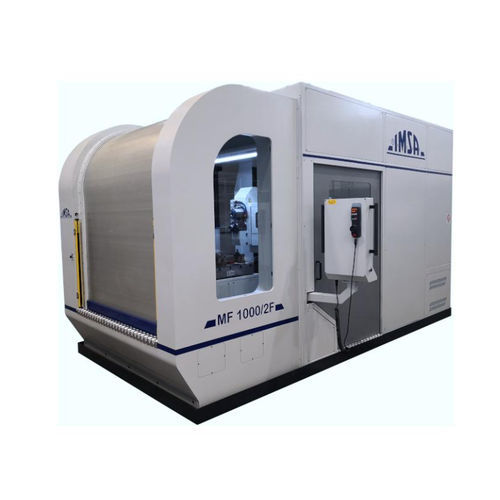

Deep hole drilling and milling machine MF1000/2F

CNCfor heat exchangersfor molds

The IMSA gun drilling and milling machine MF1000/2F is suitable for molds/blocks up to 4 / 6,5 tonnes. A workpiece having a diameter as large as 1600mm can rotate inside the machine structure. Rotary table, infinite position 360000pos/rev., size 800x1000mm, max. load 4000kg. Or (option) rotary table, infinite position 360000pos/rev., size 1000x1200mm, load 6.500kg. Drilling depth in single operation: 1000 mm. Drilling method: gun drill. Deep drilling spindle, power 11 kW, 6000 rpm, for gun drilling Ø 4-25 mm, max. 32 mm counterboring or in short-chipping materials. This spindle is generally utilized to drill water lines in molds. Specific IMSA functions for deep drilling process control: – Electronic workpiece approach – Electronic check against gun drill breaking, by reading the cutting effort – Special coordinate transformation function for angled machining. Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free gun drilling operations. For this reason the MF1000/2F is equipped with the best solutions that can automatically manage those three parameters to the most suitable value: – for oil supply to the gun drill: two different high-pressure pumps; – for oil clarification: a complete filtering system; – for oil cooling: a heat exchanger (chiller). The chiller is on a parallel oil circuit, and can be flexibly positioned around the machine. Chip conveyor as standard equipment.
