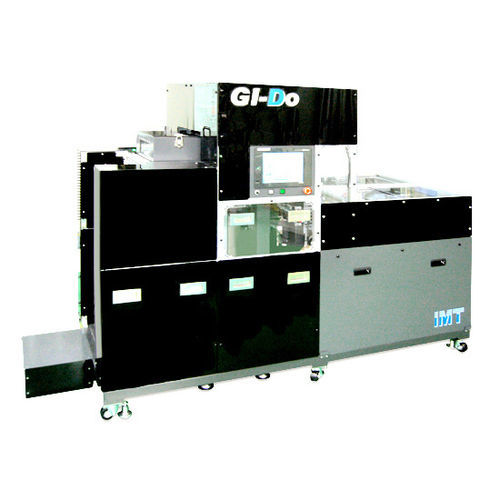

Water-cooled mounting press GI-Do

automatichotlaboratory

Product Overview
GI-Do automatically conveys specimens to the pressing section and sequentially performs resin supply, pressurization, thermal molding and engraving of specimen identification with minimal operator intervention.

Main Features

• Loader/unloader table rotates to index specimen positions; each specimen is transferred by a cylinder.
• Resin supply arm moves onto the pressurized ram to feed mounting resin precisely.
• Pressurized ram performs compression molding and heating of the resin for consistent mounts.
• After positioning, samples are moved to the printing section and engraved with configured characters.

Machine Specifications

• Applied pressure: Max 35 MPa
• Heating temperature: 100 to 200 °C
• Cooling: water method
• Setting recipes: up to 20 can be created and saved
• Engraving: up to 8 half-width characters × 1 column
• Power / Supply voltage: 3-phase 200–220 V, 50/60 Hz

Applications

• Designed for metallographic sample mounting in materials testing, quality control and research laboratories.
• Installation requirements: water cooling connection and 3-phase power supply.
