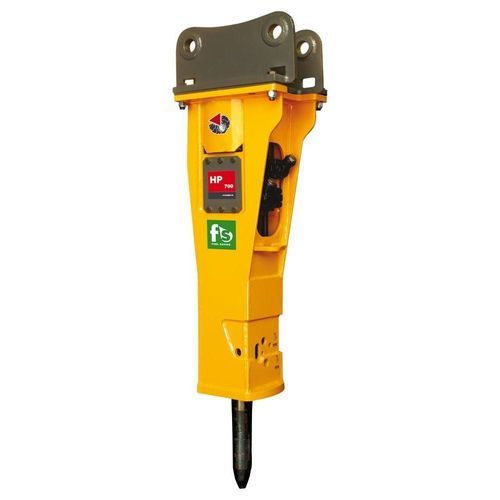

Hydraulic rock breaker HP 700 FS

for excavators

Overview
Hydraulic breaker HP 700 FS designed for compact excavators and backhoe loaders. Compatible with excavators from 4 ÷ 12 t. Operating weight 440 kg; tool diameter 80 mm. Refer to technical parameters for correct hydraulic settings.

Technical specifications (table)
Excavator weight (possible): 4 ÷ 12 ton
Weight of hammer when operated: 440 Kg
Tool diameter: 80 mm
Optimal oil supply: 80 ÷ 70 (l/min)
Possible oil: 90 ÷ 60 (l/min)
Optimum pressure adjusted to the hammer: 120 ÷ 125 bar
Possible pressure: 105 ÷ 130 bar
Pressure adjusted to the excavator: 170 bar
Back pressure max: 12 bar
Energy class per blow: 950 joule
Number of blows per minute: 620 ÷ 1500 n/min

Compatible carriers

• Compact excavator
• Backhoe loader

Notes
For values of pressure adjusted to the hammer and required oil flow consult the parameters page for selection and adjustment. N.B. All illustrations and numerical data in this catalog are indicative and may be changed without notice for product improvement.

Characteristics / technical specifications

• Excavator weight (possible): 4 ÷ 12 ton
• Weight of hammer when operated: 440 Kg
• Tool diameter: 80 mm
• Optimal oil supply: 80 ÷ 70 (l/min)
• Possible oil: 90 ÷ 60 (l/min)
• Optimum pressure adjusted to the hammer: 120 ÷ 125 bar
• Possible pressure: 105 ÷ 130 bar
• Pressure adjusted to the excavator: 170 bar
• Back pressure max: 12 bar
• Energy class per blow: 950 joule
• Number of blows per minute: 620 ÷ 1500 n/min
• Type of carrier: Compact excavator; Backhoe loader
