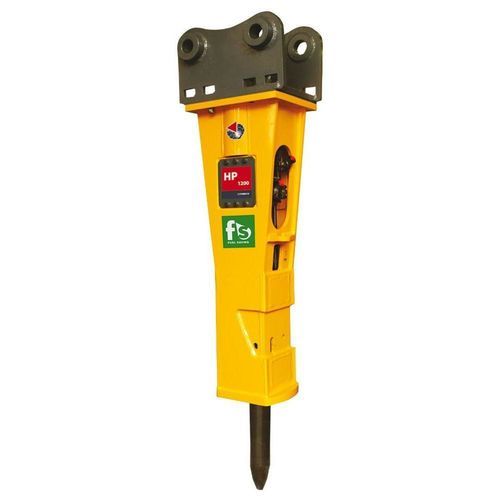

Excavator rock breaker HP 1200 FS
hydraulic

Excavator rock breaker - HP 1200 FS - INDECO - hydraulic
Excavator rock breaker - HP 1200 FS - INDECO - hydraulic
Add to favorites
Compare this product
Go to the INDECO website for more information

Characteristics

Options
for excavators, hydraulic
Weight

650 kg
(1,433 lb)

Impact energy

1,500 J

Description

Product
HP 1200 FS hydraulic breaker

Category
Hydraulic breakers — medium class

Overview
Medium hydraulic breaker designed for excavators from 6.5 ÷ 16 t. Operating weight 650 kg. Tool diameter 90 mm. Impact energy 1500 J. Blow rate 450 ÷ 980 n/min.

Technical specifications
  • Carrier weight (recommended): 6.5 ÷ 16 t
  • Operating weight: 650 kg
  • Tool diameter: 90 mm
  • Optimal oil flow: 95 ÷ 85 l/min
  • Acceptable oil flow: 105 ÷ 70 l/min
  • Optimal pressure at breaker: 120 ÷ 125 bar
  • Allowable pressure: 105 ÷ 130 bar
  • Working pressure set on carrier: 170 bar
  • Max back pressure: 8.5 bar
  • Impact energy per blow: 1500 joule
  • Blows per minute: 450 ÷ 980 n/min


Carrier types / Applications
  • Compact excavator
  • Backhoe loader
  • Wheeled excavator


Notes
All illustrations and numerical data are indicative and may be modified without prior notice for product improvement.

Features / Technical summary
  • Carrier weight (recommended): 6.5 ÷ 16 t
  • Operating weight: 650 kg
  • Tool diameter: 90 mm
  • Optimal oil flow: 95 ÷ 85 l/min
  • Acceptable oil flow: 105 ÷ 70 l/min
  • Optimal pressure at breaker: 120 ÷ 125 bar
  • Allowable pressure: 105 ÷ 130 bar
  • Working pressure set on carrier: 170 bar
  • Max back pressure: 8.5 bar
  • Impact energy per blow: 1500 joule
  • Blows per minute: 450 ÷ 980 n/min
