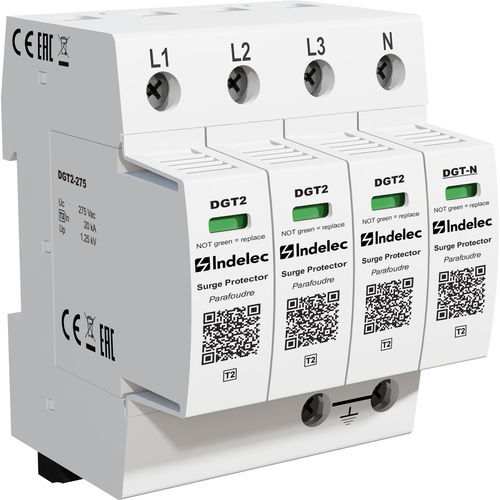

Type 2 surge arrester DGT 255 C2
for power supplies

type 2 surge arrester
type 2 surge arrester
type 2 surge arrester
Add to favorites
Compare this product

Characteristics

Type
type 2
Applications
for power supplies
Current

25,000 A

Voltage

1,500 V

Description

Désignation Part number Electrical characteristics Technology Number of pôle Network nominal voltage Protection mode Neutral configuration Max. AC operating System - Uc Temporary Over Voltage (TOV) 5 sec. UT Temporary Over Voltage (TOV) 120 mn UT Temporary Over Voltage N/PE - UT Leakage current - lc Nominal discharge current - ln 15 x 8/20ps impulses Max. discharge current - lmax Max. withstand @ 8/20ps Max. discharge current - lmax Max. withstand @ 8/20ps Protection level (@ln) - Up Admissible short-circuit current - 1^ total DGT255C2 IPh + N P84402H DGX255C2 3Ph + N P84401H MOV (L/N)+ Gas discharge tube (N/PE) 2 pôles (Ph+N) 4 poles-(3Ph + N) 230v - 230/400V C2 - C2 TT-TNS - TT-TNS 255 Vac - 255 Vac 335 Vac/withstand 440Vac/ disconnection 1200V/300A/200m s <1 mA - <1 mA 10 KA - 10 KA 80 KA - 160 kA 40 KA - 40 KA L/N : - 1.25kV, N/PE : 1.5kV 25 000 A - 25 000 A
