Type 2 surge arresters

SPD2 1P+0 Series - Class II/Type 2/Type 1 CA Pluggable Single-Pole Surge protection devices (SPDs) provide equipment protection from transient overvoltage ...

SPD2 1P+1 Series - Class II/Type 2/Type 1 CA Pluggable Multi-Pole Surge protection devices (SPDs) provide equipment protection from overvoltage events ...

SPD2 2P+0 Series - Class II/Type 2/Type 1 CA Pluggable Multi-Pole Surge protection devices (SPDs) provide equipment protection from ...

Current: 5,000 A - 40,000 A
Voltage: 1,060 V

"STP T2 40 PV is the series of devices that provide advanced overvoltage protection to photovoltaic systems by utilizing Mersen’s optimized dynamic thermal disconnection system, which does not require additional overcurrent ...

Current: 40,000 A
Voltage: 1,060 V

SURGE-TRAP® DC TYPE 1+2 YPV PHOTOVOLTAIC SPD STP T1+2 5 PV is the PHOTOVOLTAIC range of combined Type 1+2/Class I+II devices intended ...

Current: 3,000, 12,500, 100,000, 20,000, 25,000 A
Voltage: 400, 230 V

• Surge arrester suitable for 230 V or 400 V system/applications • Single phase systems or three-phase systems • Replaceable varistor module and encapsulated spark gap module • Visual and remote signalling ...

HUBER+SUHNER gas discharge tube (GDT) technology based protectors are generally designed as coaxial feed-through devices for 50 or 75 ohm systems. GDT technology based protectors feature DC/AC continuity for remote powering and large bandwidth.

Current: 100,000 A

HUBER+SUHNER quarter-wave lightning EMP protectors offer the best lightning protection available in the market, as they form a short for surge signals basically. They have been established ...

Current: 20 A
Voltage: 24, 28 V

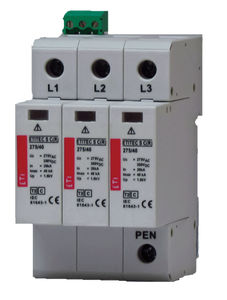

ETITEC surge arresters are intended for protection of electrical installations and devices against overvoltage effects, which may occur in atmospheric discharges and switching overvoltages. The main part ...

Current: 20,000 A
Voltage: 280 V

ETITEC surge arresters protect electrical installations and devices against overvoltage effects which may occur in switching overvoltages and atmospheric discharges. The ZnO non-linear varistor is the ...

Current: 0 A - 40 A
Voltage: 230 V

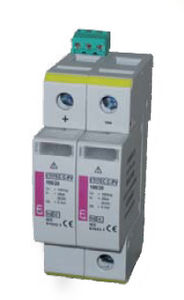

The ETITEC S C is a surge arrester designed to be used indoors. This product complies with the VDE class C and its protection suits the IEC category II. The potection happens on the subdistribution box, ...

Current: 20,000 A - 40,000 A
Voltage: 250 V - 1,000 V

Photovoltaic Applications Compact equipment for photovoltaic installations. High discharge capacity via zinc oxide varistors and gas dischargers. With thermal separation device. Visual indication of a fault in the ...

Current: 15,000 A - 30,000 A
Voltage: 600 V

Compact equipment for wind power installations. High discharge capacity via zinc oxide varistors and gas dischargers. With thermal separation device. Visual indication of a fault in the equipment. Remote signalling ...

Current: 25,000 A
Voltage: 1,500 V

The Surge Protective Device (or SPD: generic name for any device that protects against voltage surges) is a recognized and effective solution to the overvoltage problem for any of power or telecom, data, ...

Current: 12,500 A
Voltage: 1,300 V

The Surge Protective Device (or SPD: generic name for any device that protects against voltage surges) is a recognized and effective solution to the overvoltage problem for any of power or telecom, data, ...

Current: 15,000 A
Voltage: 1,300 V

The Surge Protective Device (or SPD: generic name for any device that protects against voltage surges) is a recognized and effective solution to the overvoltage problem for any of power or telecom, data, ...

Current: 50,000, 100,000 A
Voltage: 150, 275, 460 V

The highest protection against transient overvoltages for power supply lines at the point they enter the building. ATSHOCK series provide protection even against direct lightning strikes. Tested and certified with lightning impulse ...

Current: 15,000, 40,000, 65,000 A
Voltage: 150, 275, 320, 460 V

... release tubes fit to v/ithstand high flows. It is also conceivable to alter the modules through bolts so as to acquire squares of 2,3 or 4 components, don't deliver deflagration with a single-shaft security.

Current: 15,000, 40,000, 65,000 A
Voltage: 150, 275, 320, 460 V

The ATSUB-R is a power supply line surge protection which provides protection from overvoltages for electrical supply lines. It can be operated with or without the use of steel oxide varistors and gas discharge tubes. ...

Current: 20,000 A
Voltage: 440 V

Product Features: ● Full range of type 2 surge arrester with 1-4 poles, 1+NPE and 3+NPE type which conform to IEC61643. ● Modular Din-rall design with ...

Current: 12,500 A
Voltage: 150, 275, 320 V

... LED status indication Uc 150V / 275V / 320V can be achieved Protection class: Type 1+2 , Class I+II Pole number:1P,2P,3P,4P,1+1NPE,3+1NPE BR-12.5M 4P surge arrester ...

Current: 12,500 A
Voltage: 1,000 V

TUV certified Arc-fast-cut technology Type 1+2 Imp: 12.5kA available No leakage current design available 3 modular Remote signalling selectable

Current: 20,000 A
Voltage: 220 V

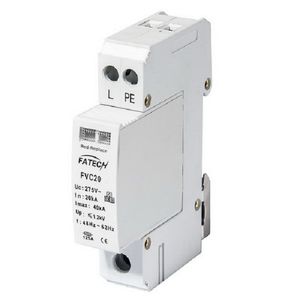

... Description FATECH Class II surge arresters have large discharge current value, high operating voltage, suitable for TN-C, TN-S, TT and IT grounding systems. The cartridges ...

Current: 30,000 A
Voltage: 220 V

... and neutral line, with no follow current. 2. Characteristics 1) Consisting of a base part and MOV pluggable protection modules. 2) For using in the lightning protection ...

Current: 20,000 A
Voltage: 1,000 V

... Fatech Electronic (CHINA) LTD 's DC surge arresters are used for protection of photovoltaic on grid systems, Uc pv up to 1200Vdc, Class I, Class I+II, Class II are ...

Current: 25,000, 12,500 A
Voltage: 230, 120, 400 V

PSC is the range of combined devices for discharging lightning currents (Type 1 / Class I), and protecting against induced transient overvoltages (Type 2 / Class II), in accordance with ...

Current: 7,500, 15,000 A
Voltage: 120, 230, 320, 400 V

CSC is the range of combined devices for arresting lightning currents (Type 1 / Class I), and protecting against induced transient overvoltages (Type 2 / Class II), in accordance with ...

Current: 5,000, 40,000 A
Voltage: 1,000 V

PSC PV is the range of combined devices for discharging lightning currents (Type 1 / Class I), and protecting against induced transient overvoltages (Type 2 / Class II), for Photovoltaic ...

Current: 0 A - 50,000 A
Voltage: 120 V - 690 V

-Type 2 AC surge protector -In : 20 kA -Imax : 50 kA -Pluggable module for each phase -Remote signaling option -NF EN 61643-11, CEI 61643-11 compliance The pluggable ...

Voltage: 150 V - 440 V

- Compact single-phase type 2 (or 3) surge protector - In : 5 kA - Imax : 15 kA - Commun/Differential mode - Pluggable module - Remote signaling option - EN 61643-11, ...

Voltage: 150 V - 440 V

- Compact 3-phase+N type 2 (or 3) surge protector - In : 5 kA - Imax : 15 kA - Common mode/differential - Pluggable module - Remote signaling option - EN 61643-11, ...

Current: 20,000 A
Voltage: 600, 1,000 V

... solar inverter brands recommend TOP DC surge arrester ZJBENY offers the DC SPDs to top inverter brands worldwide. Supply reliable protection to the solar PV systems. 1000V ...

Current: 20,000 A
Voltage: 600, 1,000 V

... solar inverter companies ZJBENY brand SPD is highly recommended by SolarEdge, SMA and many top inverter companies, as a part of DC surge protection solutions in solar PV systems. Type ...

Surge protector devices are developed to meet overvoltage protection needs transmitted on low voltage networks. These overvoltages are mainly generated by atmospheric lightening although also might occur ...

Class III surge protectors are designed to protect, against surge voltages telecom lines, data lines, and automation PLCs and industrial buses. These elements are characterised ...

Overvoltage Protection: SPD Class II with and without remote signalling

Voltage: 4 kV - 73 kV

... atmospheric over voltage damage and operation over voltage damage. 　　－Station type: To prevent AC electrical equipments of power plant, substation from atmospheric over voltage ...

Current: 18 A

... collection, used to reduce the wiring that photocells array access to the inverter and optimize the system architecture. With the installation of photovoltaic DC dedicated lighting arrester, greatly improve ...

Current: 30,000 A
Voltage: 230 V

Current: 40,000 A
Voltage: 230, 400 V

Current: 12,500 A
Voltage: 400, 230 V

Current: 15,000 A
Voltage: 1,500 V

... part and plug-in protection modules Fault-resistant Y circuit with three high-capacity varistors prevents damage to the surge protective device in case of insulation faults in the generator circuit Tested to ...

Current: 12,500 A
Voltage: 860 V

Universal combined arrester / surge arrester consisting of a base part and a plug-in protection module Device concept specifically developed for use in d.c. circuits Powerful ...

Current: 1 A
Voltage: 5 V

... Easy to retrofitUniversal surge arrester for GBit Ethernet applications, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems up to ...

Current: 200 A
Voltage: 120 V - 600 V

The Eaton SP2 Series of surge protective devices are suitable for use with applications that require both a compact footprint and a reliable and efficient performance. The SP2 Series ...

Eaton’s SPD Series offers the most advanced surge protection for industrial and commercial applications. It can be installed in two configurations: Direct integration into electrical assemblies or externally side-mounted ...

The ZoneDefender Curve range surge suppressor is specifically designed for applications that require a Type 1 or Type 2 SPD. Type 1 ...

Current: 10,000 A - 100,000 A
Voltage: 220 V - 460 V

The BKS surge protective device is applied to the alternating current 50/60Hz, 220V/380V power system and provides the protection from the surge overvoltage of an electric system.

Contact Arc Suppressor Decrease maintenance costs, increase contact reliability/dependability, and reduce destructive dc circuit overvoltages by applying the self-powered SEL-9501 Arc Suppressor to dc circuits.

Voltage: 2 kV

... Product Availability : AMERICAS, ANZPAC, ASIA, EMEA Height (mm): 56 Residual Voltage (Nominal Current) (kV): 1.6 Surge Arrester Class : 2 Continuous Operating Voltage (Uc) (kV): .28

Voltage: 1,500 V

The SURGYS G51-PV is a device that protects the equipment from overvoltages. It is constructed to provide safety for photovoltaic supply networks from transient overvoltages. It is constructed in compliance with UTE 61-740-51 and EN 5-539-11.

Voltage: 230 V - 600 V

Surge Protection Made Simple™ for IEC Applications High Performance Lightning & Surge Protection Products for All IEC Applications * Vibration and shock resistant according to EN 60068-2 ...
