Type 2 surge arrester V10 Compact

type 3class IIclass III

Product description

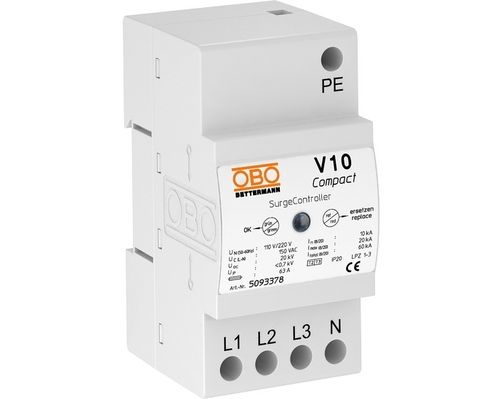

The V10 Compact is a compact surge protective device for installation on a 35 mm DIN rail. Designed for sub-distributors and device protection, it provides combined Type 2+3 protection with fast response and tested lightning current capability. Suitable for TN and TT systems, it features visual status indication and environmental-conscious packaging.

Key features

• Surge protection in sub-distributors according to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity up to 20 kA (8/20) total
• High-performance varistor systems
• Integrated thermal and dynamic disconnect device with visual function display
• Application: sub-/floor distributors and device protection
• Lightning current-tested
• 5-year warranty
• EC declaration of conformity (CE) and Eurasian Conformity (EAC)
• Transition from LPZ 1 to LPZ 3
• Protection according to DIN EN 61643-11 / IEC 61643-11 (Type 2+3)
• Packaging without plastic; made entirely from recycled cardboard
• CO2 footprint (PCF) available

Technical specifications

• Pole number: 2
• Network form: All (TN, TN-C-S, TN-S, TT)
• Signalling on device: Visual
• Protection rating: IP20
• Nominal discharge current (8/20 µs) [L-N]: 10 kA
• Nominal discharge current (8/20 µs) [N-PE]: 10 kA
• Explosion-tested version: no
• Test class, type 1: no
• Remote signalling: no
• Test class, type 2: yes
• Test class, type 3: yes
• Nominal voltage AC (50/60 Hz): 230 V
• Maximum continuous voltage AC: 255 V
• Integrated back-up fuse: no
• Pole version: 1+N/PE
• Installation type: DIN rail 35 mm
• Suitable for outdoor use: no
• Max. mains-side overcurrent protection: 63 A gG
• ROHS-conformant: yes
• Operating temperature, min.: -40 °C
• Operating temperature, max.: 70 °C
• Permitted temperature range, min.: -40 °C
• Permitted temperature range, max.: 70 °C
• Torque: 2 Nm
• SPD to IEC 61643-11: Class II+III
• SPD to EN 61643-11: Type 2+3
• Lightning protection zone (LPZ): 1→3
• Maximum discharge current (8/20 μs): 20 kA
• Arrester surge current (8/20 µs) [total]: 20 kA
• Follow current quenching capacity (eff) [N-PE]: 0,1 kA
• Response time: <25 ns
• Maximum back-up fuse: 63 A
• Max. mains-side overcurrent protection (repeat): 63 A gG
• Dimension (as listed): 255V
• Humidity, min.: 5 %
• Humidity, max.: 95 %
• Conductor cross-section, flexible (fine-wire), min.: 2,5 mm²
• Conductor cross-section, flexible (fine-wire), max.: 10 mm²
• Conductor cross-section, flexible (fine-wire), min. (AWG): 13 AWG
• Conductor cross-section, flexible (fine-wire), max. (AWG): 8 AWG
• Conductor cross-section, rigid (single-wire/multiwire), min.: 2,5 mm²
• Conductor cross-section, rigid (single-wire/multiwire), max.: 10 mm²
• Conductor cross-section, rigid (single-wire/multiwire), min. (AWG): 13 AWG
• Conductor cross-section, rigid (single-wire/multiwire), max. (AWG): 8 AWG
• Smallest selling unit: 1 piece
