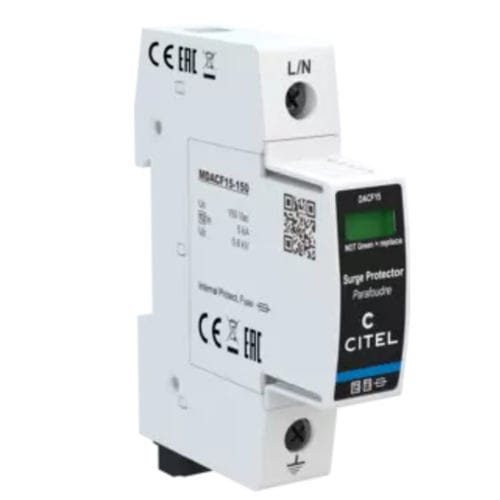

Type 3 surge arrester DACF15S series

type 2for electrical networksanti-surge

Main features

• Type 2 (or 3) AC surge protector (SPD)
• Monitored internal back-up fuse (no external back-up fuse required)
• Internal thermal disconnector with mechanical indicator and optional remote signalling
• Nominal discharge current In: 5 kA; Max discharge current Imax: 15 kA
• Pluggable modular design — one module per phase for multipolar assemblies
• Remote signalling via changeover contact
• Compliance: EN 61643-11 / IEC 61643-11 / UL1449 ed.5

Description
The DACF15S series integrates a monitored internal back-up fuse and a varistor-based thermal disconnector, eliminating the need for an external back-up fuse and simplifying installation at the main switchboard. These SPDs are intended for primary surge protection of single- and three-phase AC networks. Operation of a disconnector activates the mechanical indicator and the optional remote signalling output. The compact, plug-in modules enable fast replacement and minimum footprint in distribution panels.

Documents available

• Datasheet (Download datasheet)
• CITEL_Product Environmental Profile_DACF25S-x0-xxx.pdf
• CITEL_Certif_EU_DACF15.pdf
• Installation Sheet

Electrical Properties

• SPD type (IEC): 2+3
• Max. AC operating voltage (Uc): 150 Vac
• Temporary Over Voltage (TOV) - 5 s (UT): 180 Vac withstand (without disconnection)
• Temporary Over Voltage (TOV) - 120 min (UT): 230 Vac withstand (without disconnection or with safety disconnection)
• Residual current (leakage to ground, Ipe): < 1 mA
• Follow current: None
• Nominal discharge current (In) - 15 x 8/20 µs impulses: 5 kA
• Nominal discharge current N/PE (In N/PE) - 15 x 8/20 µs impulses: 20 kA
• Max. discharge current (Imax) - per pole @ 8/20 µs: 15 kA
• Withstand on Combination waveform IEC 61643-11 (Uoc) - Class III test: 1.2/50 µs - 8/20 µs: 10 kV
• Protection level (Up) @ In (8/20 µs): 0.6 kV
• Admissible short-circuit current (Isccr): 100 000 A

Mechanical Properties

• Technology: MOV
• SPD configuration: Single phase, plug-in modular box
• Connection to network: Screw terminals 2.5–25 mm² (35 mm² rigid)
• Format: Plug-in modular box, 1 TE (EN 43880)
• Plugable: Yes
• Mounting: 35 mm DIN rail (EN 60715)
• Housing material: Thermoplastic UL94 V-0
• Operating temperature: -40 / +85 °C
• Protection rating: IP20
• Failsafe mode: Disconnection from AC network
• Disconnection indicator: 1 mechanical indicator (Red/Green)
• Remote signalling of disconnection: output on changeover contact (wiring max. 1.5 mm²)
• Spare module(s): MDACF15-150
• Dimensions: see diagram — 1 TE (EN43880)
• Weight: 0.108 kg

Norms
IEC 61643-11 / EN 61643-11

Technical specifications

• Model: DACF15S-10-150
• Part Number: 821310121
• SPD type: 2+3 (IEC)
• Max. AC operating voltage (Uc): 150 Vac
• Nominal discharge current (In): 5 kA (15 x 8/20 µs)
• Max. discharge current (Imax): 15 kA
• Protection level (Up): 0.6 kV (@ In)
• Admissible short-circuit current (Isccr): 100 000 A
• Technology: MOV
• Integrated fuses: Yes (internal equivalent AC rating: 25 A, gG type)
• Remote signalling: output on changeover contact
• Mounting: 35 mm DIN rail (EN 60715)
• Protection rating: IP20
• Weight: 0.108 kg
