Type 2 surge protection unit ESS KIT DDC50S seriesremote signalingDC powerwith fault indication
Add to favorites
Compare this product
Characteristics
- Type
- type 2
- Applications
- remote signaling, DC power
- Other characteristics
- with fault indication, DC, plug-in
- Voltage
1,200 V, 1,500 V
- Primary current
20,000 A, 50,000 A, 100,000 A
Description
Product overview
Protection kit for ESS
Type 2 DC surge protector
Disconnector fuse suitable for the DC SPD
Additional information
To ensure maximum protection of the ESS installation, the kit consists of a surge arrester DDC50S-21Y-1200 (1200 Vdc max operating voltage) and a fuse SFD50S-10-1500DC (100,000 A tested and approved) compatible with high short-circuit currents of storage systems and CITEL surge protectors. The kit components are equipped with remote indicators to signal faults and simplify maintenance operations.
Technical characteristics / specifications
Protection kit for ESS
Type 2 DC surge protector
- Uc DC: 1200 Vdc
- In: 20 kA
- Imax: 50 kA
- Isccr: 100 000 A (with dedicated external fuse: SFD50S-10-1500DC)
- Pluggable
- Remote signaling
- Comply to prIEC 61643-41 and IEC 61643-11
Disconnector fuse suitable for the DC SPD
- Max. DC operating voltage: 1500 Vdc
- Breaking capacity: 100 000 A
- Comply to IEC 60269-7
- Values tested according to prIEC 61643-41
Additional information
To ensure maximum protection of the ESS installation, the kit consists of a surge arrester DDC50S-21Y-1200 (1200 Vdc max operating voltage) and a fuse SFD50S-10-1500DC (100,000 A tested and approved) compatible with high short-circuit currents of storage systems and CITEL surge protectors. The kit components are equipped with remote indicators to signal faults and simplify maintenance operations.
Technical characteristics / specifications
- Reference (commercial designation): ESS KIT DDC50S-21Y-1200
- Part number: 64146
- Type 2 DC surge protector: Uc DC = 1200 Vdc; In = 20 kA; Imax = 50 kA; Isccr = 100 000 A (with SFD50S-10-1500DC); Pluggable; Remote signaling; Standards: prIEC 61643-41, IEC 61643-11
- Disconnector fuse: Max DC operating voltage = 1500 Vdc; Breaking capacity = 100 000 A; Standard: IEC 60269-7; Values tested according to prIEC 61643-41
- Weight: 2.091 kg
Catalogs
No catalogs are available for this product.
See all of CITEL‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
Other CITEL products

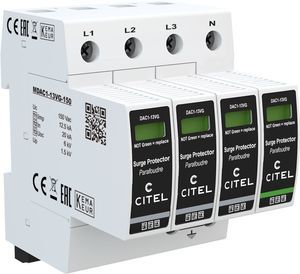

AC POWER
