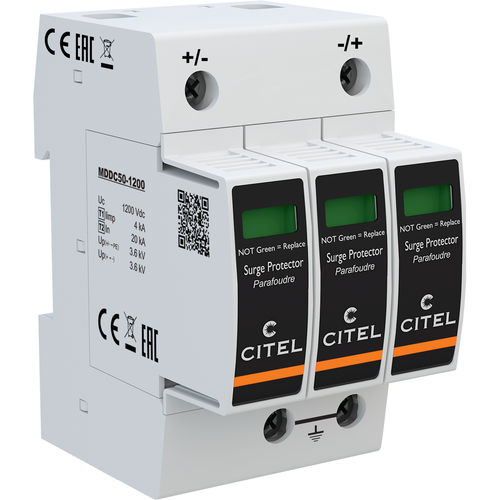

Type 2 surge protection unit DDC50-21Y seriesanti-surgehigh-energyDC power
Add to favorites
Compare this product
Characteristics
- Type
- type 2
- Applications
- anti-surge, high-energy, DC power
- Other characteristics
- varistor, DIN rail, draw-out, DC
- Voltage
450 V, 650 V, 1,000 V
Max.: 1,500 V
Min.: 0 V
- Primary current
20,000 A
Max.: 50,000 A
Min.: 0 A
Description
DC power Type 2 SPD
For Energy Storage/EV Charging
In/Imax: 20/50 kA
Pluggable modules
Remote signaling (option)
prIEC 61643-41 compliance
The DDC50 range is type 2 pluggable surge protectors designed for protection to battery storage system. The technology based on high energy varistor equipped with thermal disconnection mechanism offers protection efficiency and and a maximal reliability.
