type 2 surge arrester / type 1 / type 3 / single-pole
DAC1-13VG Series

Add to MyDirectIndustry favorites
Compare this product
type 2 surge arrester / type 1 / type 3 / single-pole type 2 surge arrester / type 1 / type 3 / single-pole - DAC1-13VG Series
{{requestButtons}}

Characteristics

  • Type:

    type 2, type 1, type 3

  • Other characteristics:

    single-pole, multipole, thermoplastic, DIN rail, draw-out, AC

  • Applications:

    anti-surge

  • Voltage:

    Min.: 150 V

    Max.: 440 V

Description

-Type 1 + 2 + 3 AC surge protector
-VG Technology
-In : 20 kA
-Iimp : 12,5 kA on 10/350µs impulse
-No leakage current
-Pluggable module for each phase
-Remote signaling (option)
-Optimized to TOV
-EN 61643-11, IEC 61643-11 and UL1449 ed.4 compliance

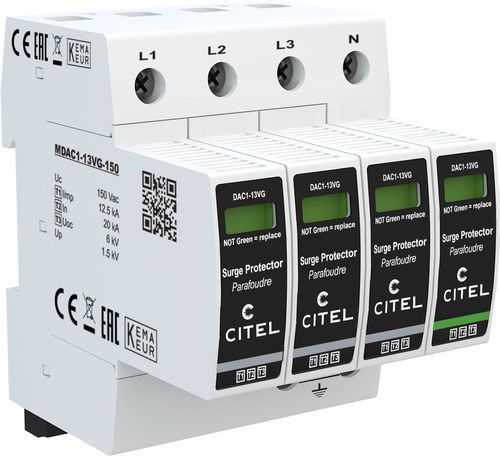

The DAC1-13VG is an extreme duty pluggable Type 1+2+3 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod.

Equipped with exclusive CITEL’s VG technology, the range achieves an high protection level, guaranteeing a maximum protection efficiency, a absence of follow and leakage currents, a simplification of use (no additional lightning arrester required) and a maximum lifetime.

The DAC1-13VG surge protectors are especially compact and available in multipolar versions to protect single or 3-phase AC networks, which makes them the best surge protection solution for Type 1 requirements.
