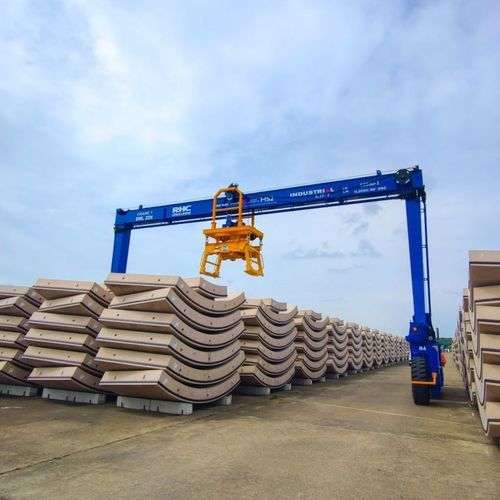

Mobile gantry crane

for prefabrication sitespower-operatedsingle-girder

Overview
The INDUSTRIAL LIFT single-beam mobile gantry cranes enable lifting and moving heavy loads using dedicated lifting accessories. Designed to withstand intensive duty cycles, these gantry cranes simplify handling of bulky materials and adapt easily to different load characteristics.

Details

• Easy maneuvering and precise steering control thanks to motorized slew rings
• One or more movable hooks mounted on the beam for individual lift points
• Customizable dimensions according to customer requirements
• Proportional dual lifting speeds
• Real-time remote assistance via M2M system
• Ability to integrate lifting accessories to extend usage options
• Machine versatility for indoor and outdoor operations
• Radio remote control with color display and weight readout
• Corrosion-resistant paint treatment
• Proportional dual travel speed

Technical specifications (main details and features)

• Lifting system: Independent winches, one per lifting point, automatically synchronized via encoder for balanced load control during hoisting and lowering.
• Radio remote control: All trolley movements managed remotely by a radio control with proportional commands, enabling safe movements and maximum operator visibility.
• Structure: Engineered to withstand high structural stresses from intensive duty cycles; frame and mechanical components sized to minimize deformation and wear.
• Remote maintenance: Router and M2M SIM card installed in the electrical cabinet for remote monitoring, diagnostics and rapid intervention in case of anomalies.
• Spreader beams: Sliding spreaders on the upper beam equipped with hooks for slings, chains or other accessories; translation and lifting motions controlled by radio remote for safety and precision.
• Corrosion protection: Protective coating applied to the structure against oxidation and environmental agents.
• Motor compartment: Motor compartment protected by soundproof aluminum doors with key lock; electrical cabinet with alarm indicators and double door for high protection level.
• Steering: Innovative system with each wheel steerable, facilitating maneuvers; multiple steering modes for precise and intuitive driving.

Electric version
The electric version of the single-beam mobile gantry crane combines high performance with low environmental impact. Powered by state-of-the-art components, these solutions ensure quiet and efficient operation, suitable for indoor use or where low emissions are required in the work area.

Characteristics / technical specifications

• Type: Single-beam gantry crane (mobile)
• Lifting systems: Independent winches synchronized by encoder
• Control: Radio remote with proportional controls, color display and weight readout
• Remote maintenance: Router and M2M SIM card for monitoring and remote diagnostics
• Paint: Corrosion protection treatment of the structure
• Options: Sliding spreaders, movable hooks, integration of lifting accessories (slings, chains, etc.)
• Performance: Proportional dual speeds for lifting and travel
• Use: Designed for intensive duty cycles, suitable for indoor and outdoor use
• Safety and maintenance: Soundproof motor compartment, protected electrical cabinet with indicators
