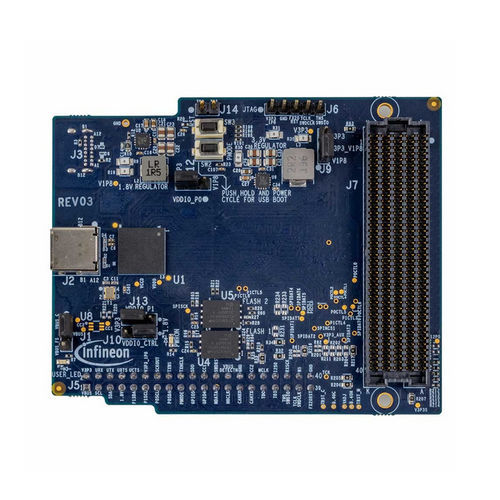

Evaluation board KIT_FX10_FMC_001

EZ-USB™ FX10 Development Kit (DVK) with FPGA Mezzanine Card (FMC) interface allows FX10 to be connected to most FPGA development platforms by plugging the DVK to any FMC socket. The DVK provides headers for quick access to peripheral interfaces such as serial communication block (SMB), GPIO and debugging port. Summary of Features ANSI/VITA-57.1 standard Compact card with FMC terminal USB-C bus-power UVC FW supports color bar test pattern USB FS debug port Benefits Drop connection to most FPGA boards Bus-power for standalone operation Quick UVC function demo Easy debugging with virtual COM List of Components: CYUSB4014 IR3883MTRPBF S25FS256SDSNFI000 BSD235N ESD Potential Applications Video frame grabber Mixed reality headset, 3D scanners Test and measurement
