SMD DC/DC converter REF_LLC_500W_FULLGANindustrialswitching
Add to favorites
Compare this product
Characteristics
- Configuration
- SMD
- Applications
- industrial
- Other characteristics
- switching
- Input voltage
375 V, 410 V
- Output voltage
21 V, 24 V
- Power
Max.: 500 W
Min.: 0 W
Description

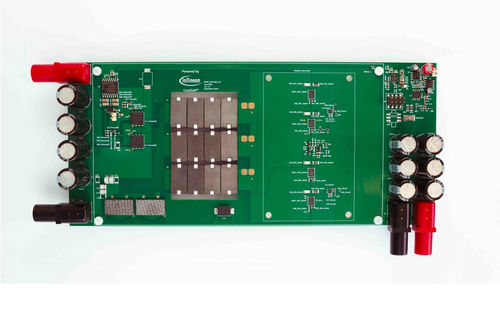

The REF_LLC_500W_FULL GAN is a half-bridge LLC resonant DC-DC converter board, delivering 500 W at 22 V. With low profile, high switching frequency, and efficiency it is ideal for super thin OLED TVs. The design showcases a full GaN solution, with the CoolGaN™ Transistor 650 V G5 (IGLD65R110D2) used on the primary side and the CoolGaN™ Transistor 100 V G3 (IGC033S101), controlled by the XDPP1148-100B, on the secondary side.
Summary of Features
500 W at full output voltage range
High peak efficiency (max. 96%)
Low profile (Height 6 mm)
Synchronous rectification
650 V and 100 V GaN transistors
Benefits
DC-DC converter for OLED TV power supply
Attractive business model for customers
Easy installation inside TV (small size)
Eliminate dummy load
