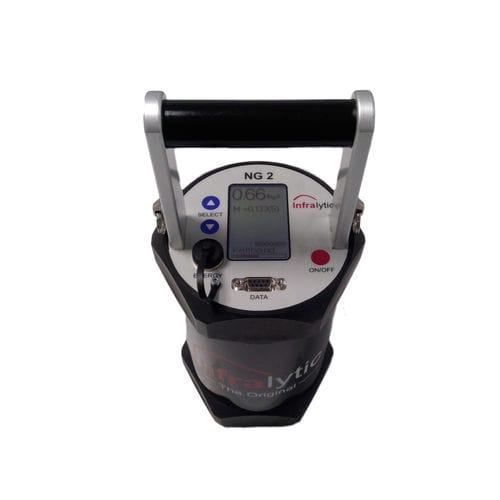

Oil layer thickness gauge NG3

handheldspectral reflectancebattery-powered

The further developed NG2 is called NG3 and was specially developed for the calibration of the UV-Mini. The technical data and functions of the NG3 are identical to the NG2. You can find more information about the UV-Mini on this homepage under: Devices > UV-Mini Sensor. Features internal automatic continuous validation review internal automated material rolling direction determination can be operated via smartphone with photo documentation Battery operated for more than nine hours Easy to use flexible use in a wide variety of environments Calibrator of the UV-Mini Battery tester Areas of application The measurable oil thickness is between 0.05 and 6 µm (approximately g/m²) oil layer thickness. Calibrations are standard for: untreated cold sheet hot-dip galvanized sheet fire-aluminum sheet electrolytically galvanized sheet (automatic phosphating detection) galvannealed Aluminum (mill finish and EDT) Compass function Aluminum surfaces as well as some steel surfaces are very inhomogeneously structured. They must always be measured with the handle at right angles to the rolling direction You will have read this note many times. But what if the direction of rolling cannot be seen with the naked eye? Then the compass function, which can be provided for Infralytic NG2 sensors, will help you. Here you will find more information about the compass function. Smartphone-App Just take a few measurements in passing? Sure it’s possible! And best of all: The measured data is immediately available for evaluation. Use our Infralytic Android App for this. Here you can find more information about the smartphone app.
