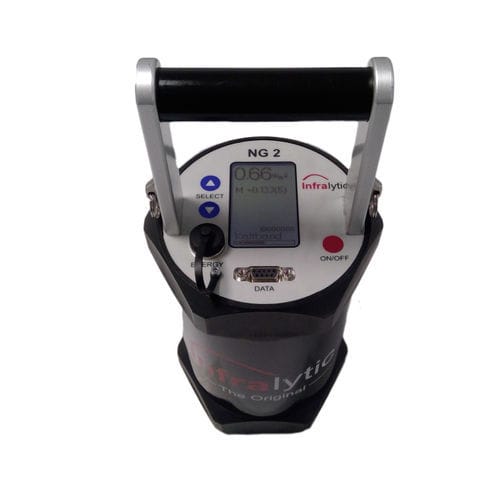

Oil layer thickness gauge NG2-Custom

handheldspectrum-basedwith smartphone application connectivity

The handheld device NG2-Custom is designed for measurements on shiny surfaces and is used like the standard NG2. All extras and additional functions are also available.. Features internal automatic continuous validation review internal automated material rolling direction determination can be operated via smartphone with photo documentation Battery operated for more than nine hours ease to use flexible use in a wide variety of environments Areas of application Sensor for special applications of lubricating film. Compass function Aluminum surfaces as well as some steel surfaces are very inhomogeneously structured. They must always be measured with the handle at right angles to the rolling direction. You will have read this note many times. But what if the direction of rolling cannot be seen with the naked eye? Then the compass function, which can be provided for all Infralytic NG2 sensors, will help you. Here you will find more information about the compass function. Smartphone-App Just take a few measurements in passing? Sure it’s possible! And best of all: The measured data is immediately available for evaluation. Use our Infralytic Android App for this. Here you can find more information about the smartphone app. Calibration If needed users can develop and program specific calibrations. New functionalities in connection with the associated software easily allow you to develop your own calibrations. Technical Documentation Measurement method: Infrared spectroscopy Measuring range: 0,05 - 1 g/m² Measurement accuracy: 0,02 - 0,3 g/m²: +/- 0,015 g/m² 0,3 - 2 g/m²: +/- 0,2 g/m² > 2 g/m²: +/- 10% from the measured value Repeatability: < 0,0010 g/m²
