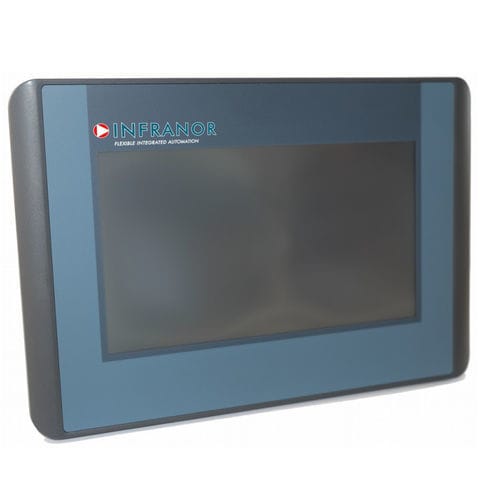

Touch screen NC controller XtracontrolDC2

embeddedwith integrated HMIRS232

Overview
The XtracontrolDC2 TouchPanel DialogController from Infranor is a scalable operator panel designed for small to medium industrial automation applications. It combines a colour LCD touchscreen with a powerful 800 MHz ARM Cortex-A9 processor and multiple onboard interfaces to support HMI, motion control and machine communication needs.

Characteristics

• Scalable solution for small and medium applications
• 800 MHz ARM Cortex-A9 processor for real-time tasks
• Optimized for servo and motion-control applications

Display

• Available sizes: 4.3" – 15.6" colour LCD
• Resistive touchscreen suitable for industrial use

Software packages

• CODESYS V3 Soft-SPS (Soft-PLC)
• CODESYS SoftMotion
• XtracontrolEasyMotion

Interfaces

• CANopen and EtherCAT (Master capable)
• 2× Ethernet ports
• USB-Host and serial ports

Special features

• Digital and analog I/Os onboard
• Micro-SD card slot for storage and logging
• Designed for rough industrial environments

Technical specifications

• Model: XtracontrolDC2
• Brand: Infranor
• Processor: 800 MHz ARM, Cortex-A9 core
• Display: Colour LCD, sizes 4.3" to 15.6"; resistive touchscreen
• Connectivity: 2× Ethernet; CAN (CANopen-Master capable); EtherCAT (Master capable); USB-Host; Serial ports
• I/Os: Digital and analog I/Os onboard
• Storage: Micro-SD slot
• Environment: Designed for rough industrial environments
• Software options: CODESYS V3 Soft-SPS; CODESYS SoftMotion; XtracontrolEasyMotion
• Application focus: Optimized for servo and motion-control systems
