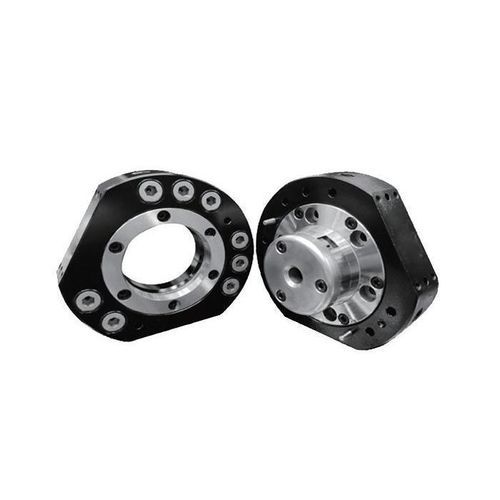

Robotic tool changer QCM-4500-50S

pneumaticpneumatically-actuated

Overview Increase the versatility, efficiency and productivity of robotic systems with the QCM quick change module series. The QCM range enables fast, reliable exchange of tools, grippers or special end‑of‑arm equipment to reduce cycle times and maintain repeatable positioning in automation applications.

Key features

• High clamping force for quick and reliable tool changes
• Precise re-positioning through self-centering features
• Compact, lightweight design suitable for robot mounting
• Fail-safe self-locking mechanism in case of pneumatic pressure loss

Available modules

• QCM-4500-50S — Slider locking; Clamping force: 4500 N; Max clamping weight: 50 kg; Main features: self-centering tapered hole; fail-safe self-locking
• QCM-4500-50B — Ball locking; Clamping force: 4500 N; Max clamping weight: 50 kg; Main features: self-centering ball structure; fail-safe self-locking
• QCM-7400-75B — Ball locking; Clamping force: 7400 N; Max clamping weight: 75 kg; Main features: self-centering ball structure; fail-safe self-locking
• QCM-1100-16B — Ball locking; Clamping force: 1100 N; Max clamping weight: 16 kg; Main features: self-centering ball structure; fail-safe self-locking

Technical specifications

• Series name: QCM (Quick Change Module)
• Module types: Slider locking (slider) and Ball locking (ball)
• Models and nominal clamping force / max clamping weight: QCM-4500-50S — 4500 N / 50 kg
• Models and nominal clamping force / max clamping weight: QCM-4500-50B — 4500 N / 50 kg
• Models and nominal clamping force / max clamping weight: QCM-7400-75B — 7400 N / 75 kg
• Models and nominal clamping force / max clamping weight: QCM-1100-16B — 1100 N / 16 kg
• Main mechanical features: slider locking or ball locking; self-centering tapered hole or self-centering ball structure for precise re-positioning
• Design: compact, lightweight for robot integration
• Fail-safe: self-locking mechanism in case of pneumatic pressure loss
