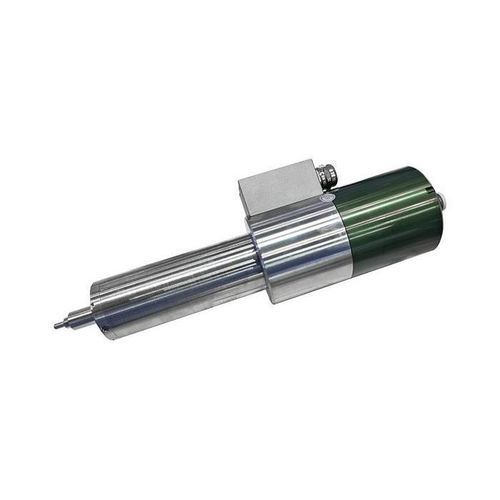

Milling motor spindle DGZ-03380／0.54-PG

machiningfor grindingspindle

Overview
No matter if dry or wet processing, this DGZ series of asynchronous spindles offers solutions for dental milling, glass grinding and PCB machining. Equip your machining centre with compact, high-speed spindles engineered for precise restoration and component production in time-efficient workflows.

Benefits

• High precision and dynamic stability for consistent results
• Optimised for high-quality dental restorations and fine-detail machining
• Compact dimensions with notable power-to-size ratio
• Reliable performance with economical operating cost

Available models (table)
Article number | Category | Model | Diameter (mm) | Motor | Max. speed (rpm) | Power S1 (kW) | Torque S1 (Nm) | Collet Size (mm) | Tool Change | Cooling | Taper Cleaning | Air Sealing | Download PDF
15004460 | Dental milling | DGZ-03380／0.54-PG | 33 | Async | 80000 | 0.45 | 0.10 | 3 | Pneumatic | Air | ✓ | ✓ | PDF available
15006430 | Dental milling | DGZ-03380／0.54-MG | 33 | Async | 80000 | 0.45 | 0.10 | 3 | Electrical | Air | ✓ | ✓ | PDF available
15006596 | Dental milling | DGZX-04580/0.96-PG | 45 | Async | 80000 | 0.80 | 0.13 | 6 | Pneumatic | Air | ✓ | ✓ | PDF available
15003301 | Dental milling | DGZ-06260／1.2A2-PW | 62 | Async | 60000 | 0.90 | 0.15 | 4 | Pneumatic | Water | ✓ | ✓ | PDF available
15005283 | Dental milling | DGZ-06260／1.8A1-PWM | 62 | Async | 60000 | 1.50 | 0.24 | 4 | Pneumatic | Water | ✓ | ✓ | PDF available
15000422 | PCB machining | DGZ-60C | 62 | Async | 60000 | 1.50 | 0.24 | 3.175 | Pneumatic | Water | ✓ | ✓ | PDF available
15005537 | Glass grinding | DGZ-06260／2.5A4-PWM | 62 | Async | 60000 | 1.50 | 0.24 | 4 | Pneumatic | Water | × | ✓ | PDF available

Characteristics / technical specifications

• Series name: Dental | GLAS | PCB Spindles
• Application areas: Dental milling, Glass grinding, PCB machining
• Motor type: Asynchronous (Async)
• Maximum speeds available: up to 80,000 rpm (models DGZ-03380, DGZX-04580) and 60,000 rpm (DGZ-06260, DGZ-60C)
• Available diameters (mm): 33, 45, 62
• Power S1 (kW) per model: DGZ-03380 variants 0.45 kW; DGZX-04580 0.80 kW; DGZ-06260 variants 0.90–1.50 kW; DGZ-60C 1.50 kW
• Torque S1 (Nm) per model: DGZ-03380 variants 0.10 Nm; DGZX-04580 0.13 Nm; DGZ-06260 variants 0.15–0.24 Nm; DGZ-60C 0.24 Nm
• Collet sizes (mm): 3, 4, 6 (model dependent); DGZ-60C uses 3.175 mm
• Tool change: Pneumatic or Electrical (model dependent)
• Cooling options: Air or Water (model dependent)
• Taper cleaning: available on most models (✓) except DGZ-06260／2.5A4-PWM where indicated as ×
• Air sealing: available on all listed models (✓)
• Each model includes a downloadable PDF technical document
